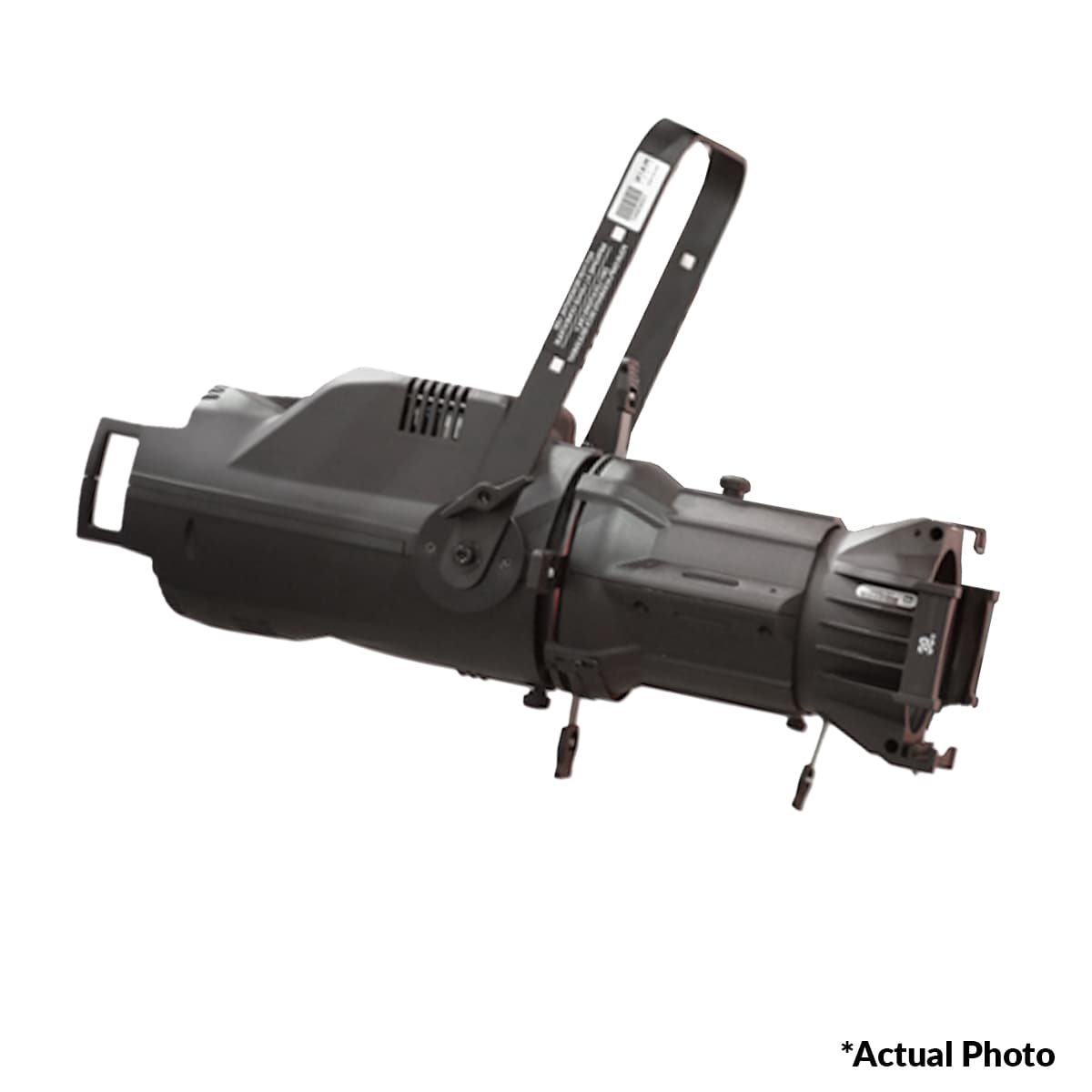

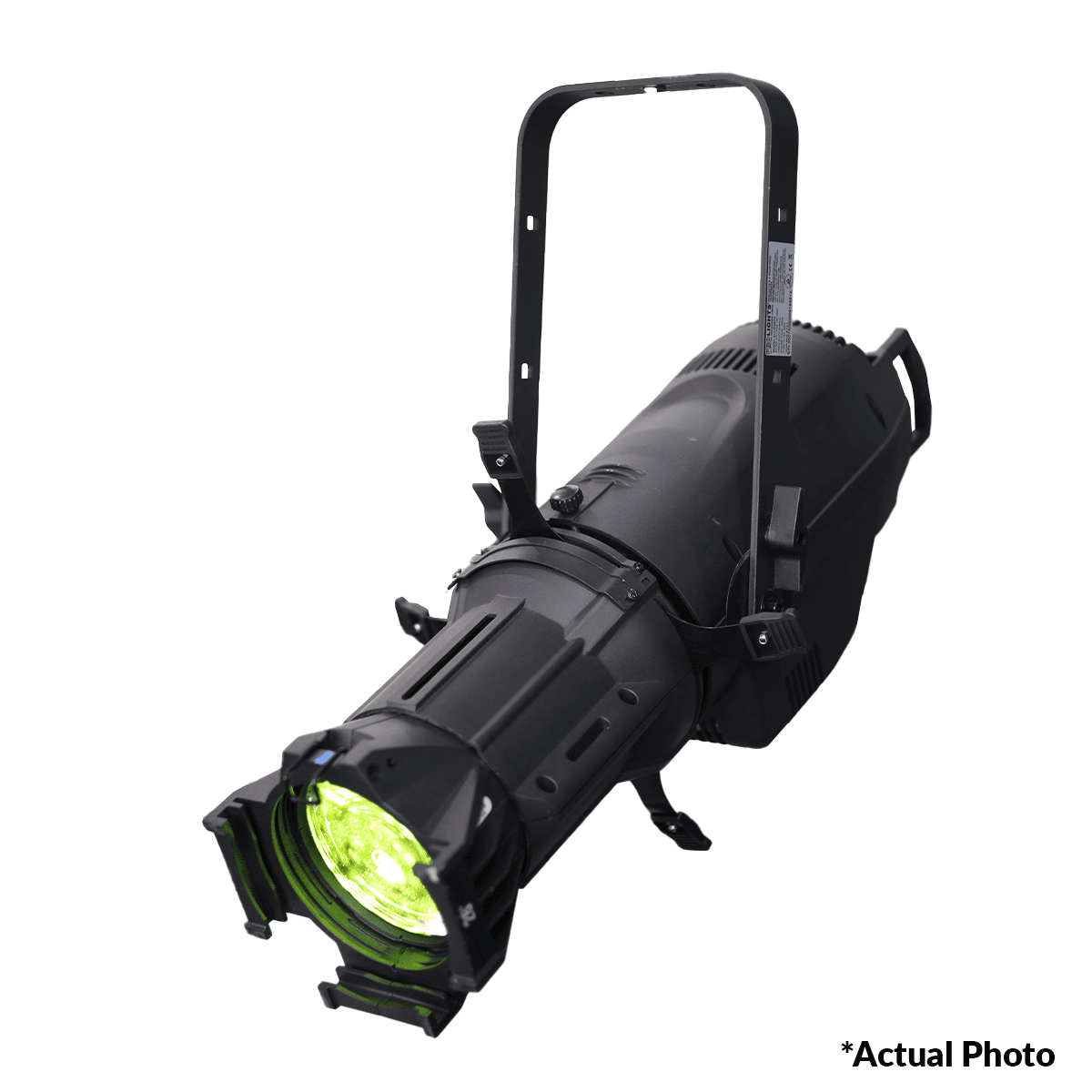

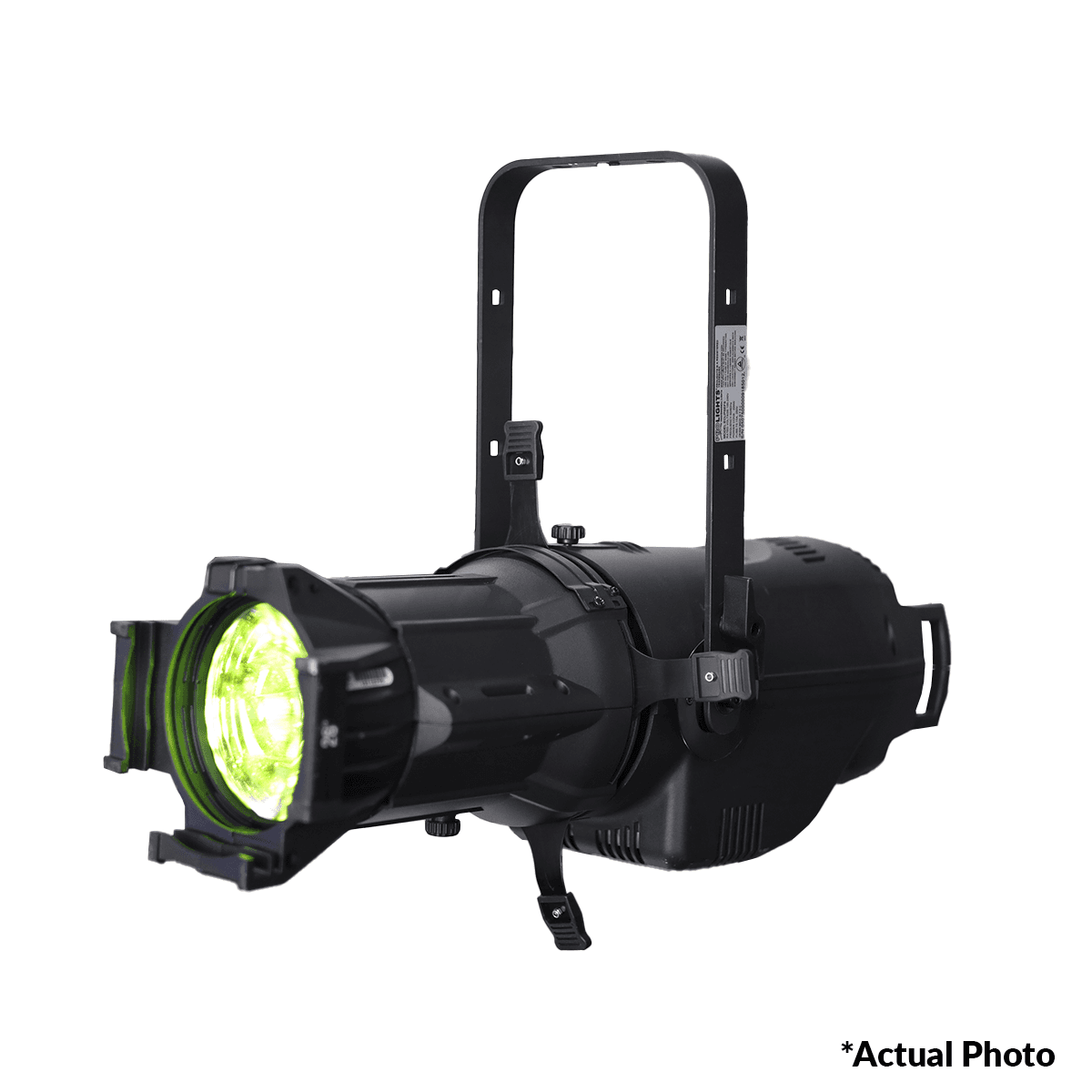

ProLights EclipseFS

• RGB + Lime LED ellipsoidal with HD dimming and extensive colour palette.
• High definition optics for sharp gobo projection.
• Accepts industry-standard accessories.

LIGHT SOURCE

• Source: 91x3W RGB + lime LEDs
• CT: @Full - 5400K
• CRI: @Full in STUDIO mode - 82; @Full in HB mode - 70
• Luminous flux: (26°) 6262 lm at studio mode, 6524 lm at HB mode
• Lux: (14°) 8090lux, (19°) 7020lux(26°) 4960lux, (36°) 2610lux, (50°) 1190lux @3m full
• Source life expectancy: >50.000 h

OPTICS

• Beam angle: optional 14°/19° / 26° / 36° / 50°
• Lens type: high-quality glass lens optics

COLOUR SYSTEM

• Colour mixing: RGB + lime / full colour
• CTC: CTC control through independent DMX channel
• White presets: 2700~10000K
• Colour wheel: virtual colour wheel with presets
• Macros: several pre-build pixel macros with adjustable speed

DYNAMIC EFFECTS

• Gobo size: B
• Static colour mode: selection of static colour
• Manual colour mode: manual adjustment of colour
• Special features: HB Mode, Studio Mode, Silent Mode

BODY

• Body: sturdy die-cast aluminium body conceived for long-time durability
• Body colour: black

CONTROL

• Protocols: DMX512, RDM
• DMX channels: Theater 1/3/5ch - Tour 3/4/5/8/13channel
• RDM: RDM ready for fixture remote monitor and settings
• Display: black OLED high-resolution display
• Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included
• Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0~100% electronic dimmer
• Strobe / shutter: 1-25 Hz, electronic
• Battery backup: battery backup for user operation without connecting to the main power
• Operating temperature: -10° ~ +45°
• Flicker: flicker-free operation
• Selectable PWM: 600~25K Hz

ELECTRICAL

• Power supply: 100-240V – 50/60Hz
• Power consumption (at 230V): 260W
• Power consumption (at 120V): 260W
• Output (at 230V): 9 units on a single power line
• Output (at 120V): 4 units on a single power line
