Ayrton Digital Lighting

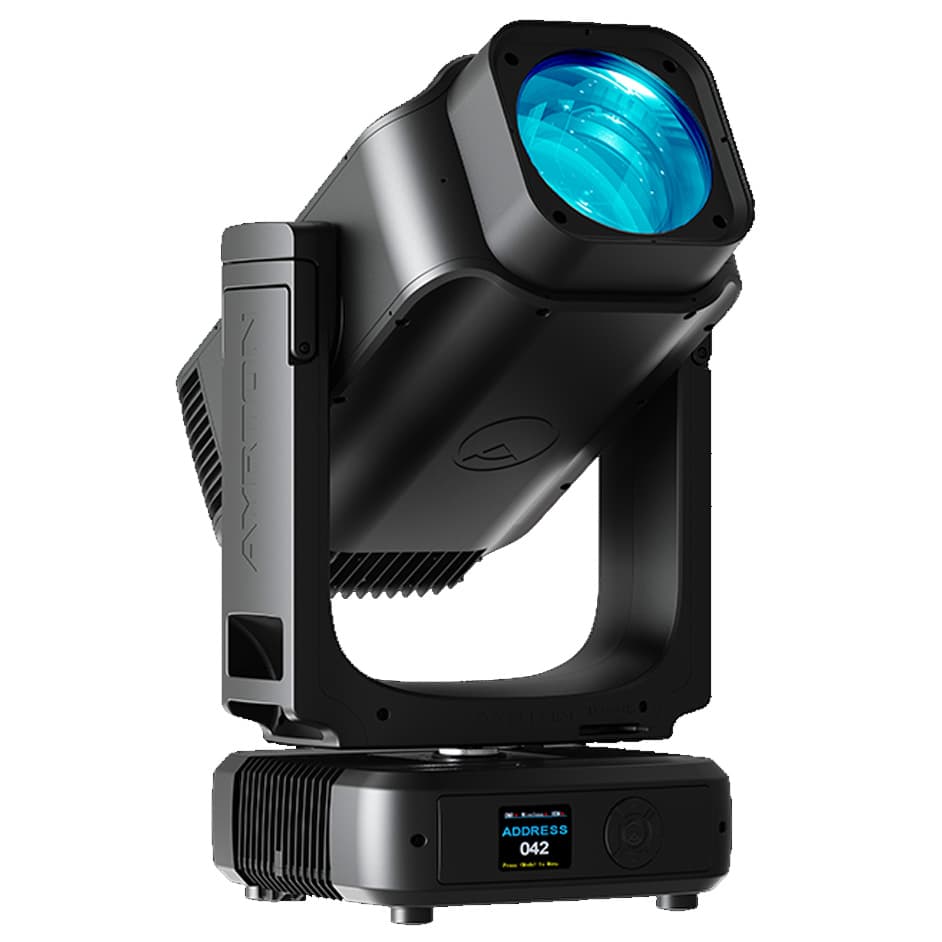

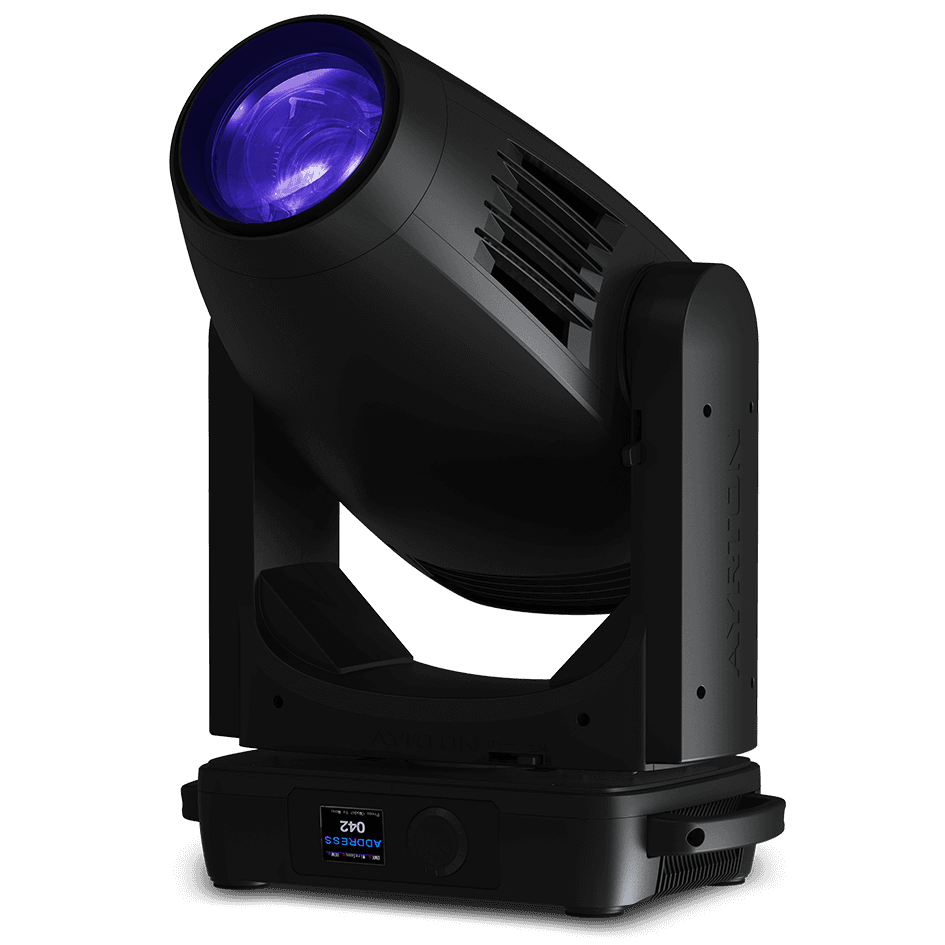

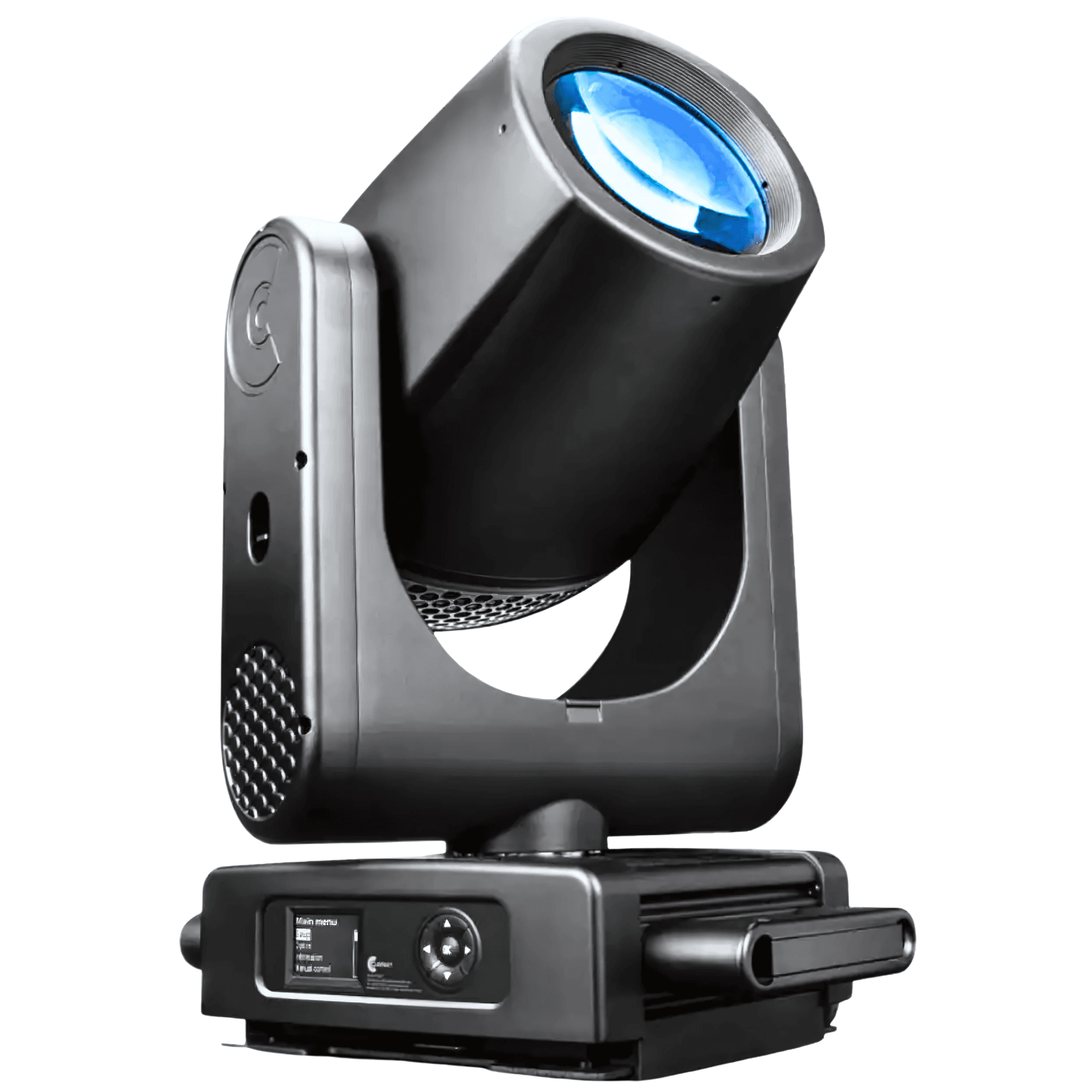

Ayrton Khamsin-S LED Profile

Ayrton Digital Lighting

Ayrton Khamsin-S LED Profile

In Stock and ready to ship rentals

Rent the Ayrton Khamsin - 750 W LED Module in the Ghibli Format With 60% More Light Output

People who were interested in this product also liked:

Details

Downloads

Shipping

Details

Introducing the Ayrton Khamsin, a groundbreaking profile luminaire boasting a compact design and unparalleled performance. Powered by a 750W LED module, it delivers up to 40,000 lumens with a 7000K color temperature in the Khamsin-S version and native CRI greater than 90 in the Khamsin-TC version. The internal structure has been redesigned with cast aluminum sides and an efficient cooling system for optimal performance. The double rotating gobo wheel enables stunning morphing effects, while the 8:1 zoom ratio and beam aperture of 7° to 58° ensure versatility. Additional features include CMY color mixing, a framing section, and a range of gobos, filters, and prisms. Ideal for large venues and major events, the Ayrton Khamsin is the ultimate lighting solution.



Introducing the Ayrton Khamsin, a groundbreaking profile luminaire boasting a compact design and unparalleled performance. Powered by a 750W LED module, it delivers up to 40,000 lumens with a 7000K color temperature in the Khamsin-S version and native CRI greater than 90 in the Khamsin-TC version. The internal structure has been redesigned with cast aluminum sides and an efficient cooling system for optimal performance. The double rotating gobo wheel enables stunning morphing effects, while the 8:1 zoom ratio and beam aperture of 7° to 58° ensure versatility. Additional features include CMY color mixing, a framing section, and a range of gobos, filters, and prisms. Ideal for large venues and major events, the Ayrton Khamsin is the ultimate lighting solution.



Downloads

Shipping

This equipment has been inspected by a Main Light certified technician at one of our locations.

01

Features

  • Compact design with 750W LED module
  • Up to 40,000 lumens output (Khamsin-S) and native CRI greater than 90 (Khamsin-TC)
  • Redesigned internal structure with cast aluminum sides
  • Efficient cooling system
  • Double rotating gobo wheel for morphing effects
  • 8:1 zoom ratio and 7° to 58° beam aperture
  • CMY color mixing system
  • Framing section with 4 shutter blades
  • Two wheels with six interchangeable HD glass gobos
  • Effects section including continuous dynamic effects wheel, 15-blade iris diaphragm, and two frost filters
  • Two rotating prisms (5-facet circular and 4-facet linear)
02

Specifications

  • 13 elements 8:1 zoom high-resolution optic system
  • 158 mm frontal lens
  • Khamsin-S: 60,000 lumens 8000 K white light engine, output up to 40,000 lumens, 7000 K color temperature, CRI greater than 70
  • Khamsin-TC: 48,000 lumens 7000 K white light engine, output up to 31,000 lumens, 6400 K color temperature, CRI greater than 90
  • Rated life (L70): up to 40,000 hours
  • Movement: 540° (pan), 262° (tilt)
  • CMY color mixing, variable CTO, and fixed color wheel with six complementary colors
  • 4 individually positionable shutter blades, rotation +/- 45°
  • Iris diaphragm range: 15% to 100% open
  • 2 frost filters: one light, one heavy
  • 2 indexable rotating gobo wheels with 6 high-precision glass gobos, plus open position
  • Electronic dimmer (0 to 100%), strobe effect (1 to 25 flashes per second)
  • DMX 512 protocol, RDM compatible, stand-alone and Master/Slave modes, ArtNet™ & sACN protocol
  • Power supply: 120 to 240 Volts, 50/60 Hz, maximum 1,150 W
  • Advanced liquid cooling system, selectable ventilation modes, IP20 protection rating
  • Housing: aluminum and steel skeleton, die-cast aluminum base, fire retardant ABS PC covers
  • Installation: Omega brackets, mounting points, safety cable attachment point
  • Operating temperature range: -10 °C (14 °F) to 45 °C (113 °F)
  • Compliance: EU (EMC & LVD) and US (Safety & EMC)
  • Dimensions: 494 x 778 x 280 mm (l x h x d)
  • Weight: 39.8 kg

Recommended Products

Eclipse FS-50 Degree Lens Tube
AC Lighting
Eclipse FS-50 Degree Lens Tube

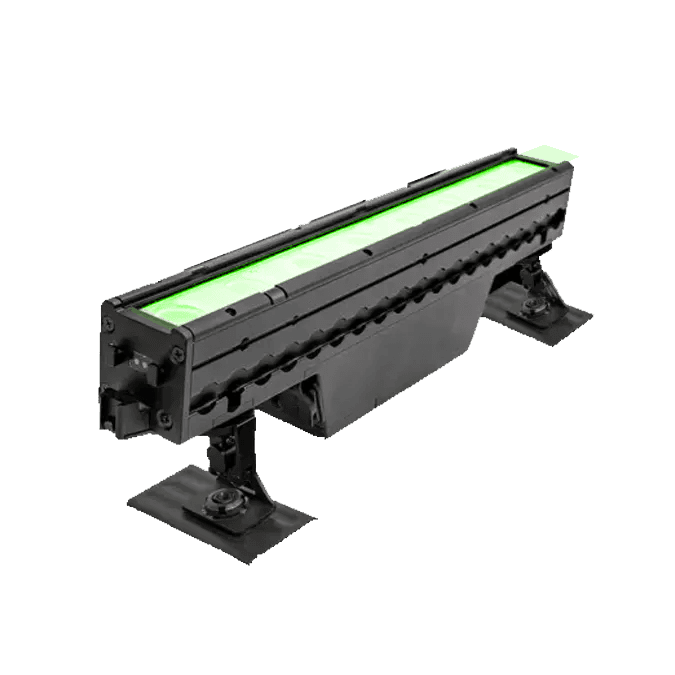

Astera Helios Tube 1/2M
Astera
Helios Tube 1/2M

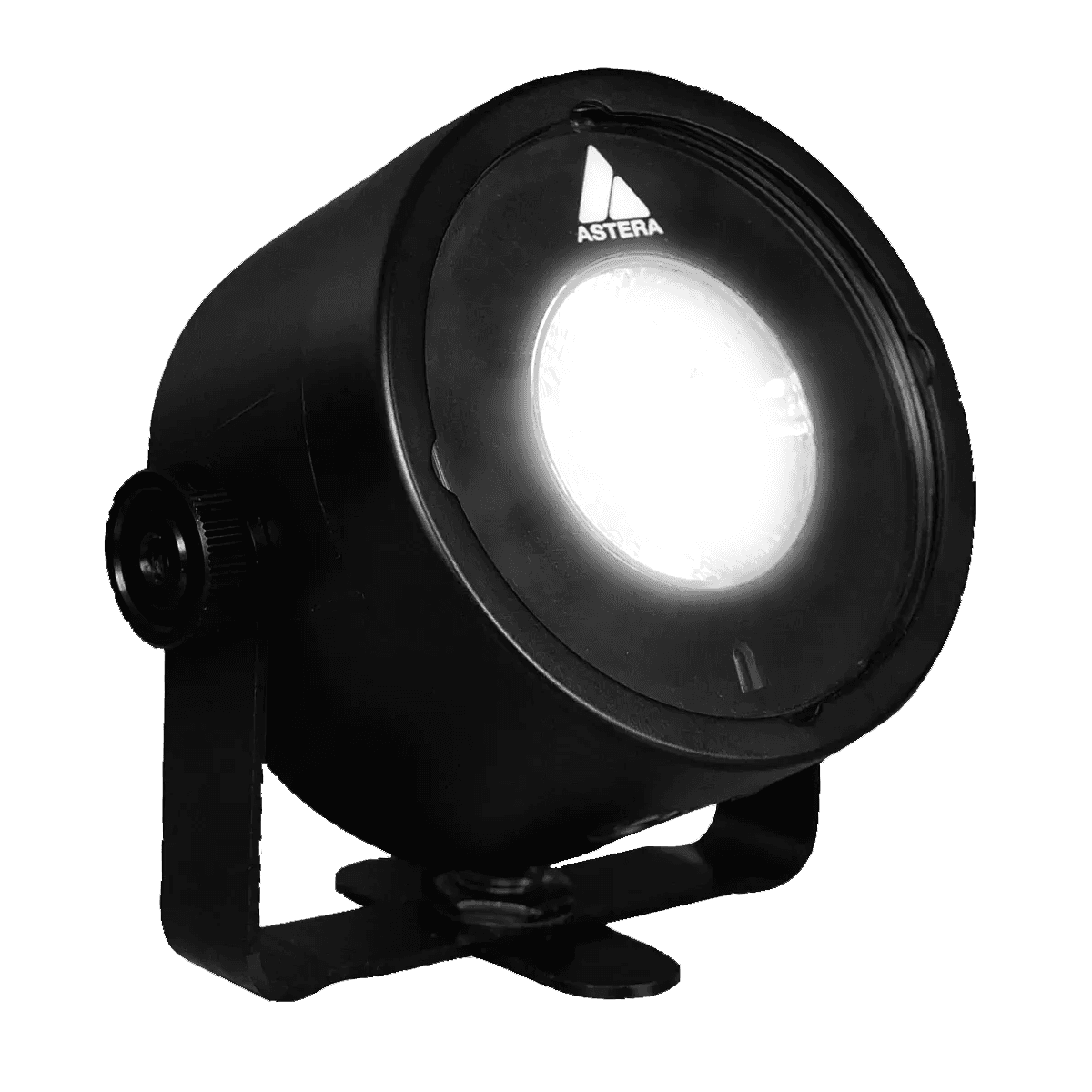

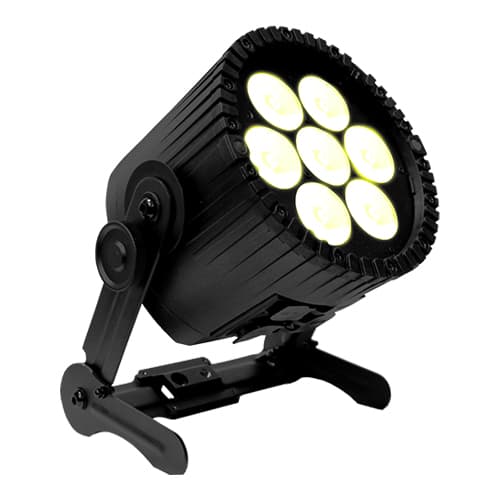

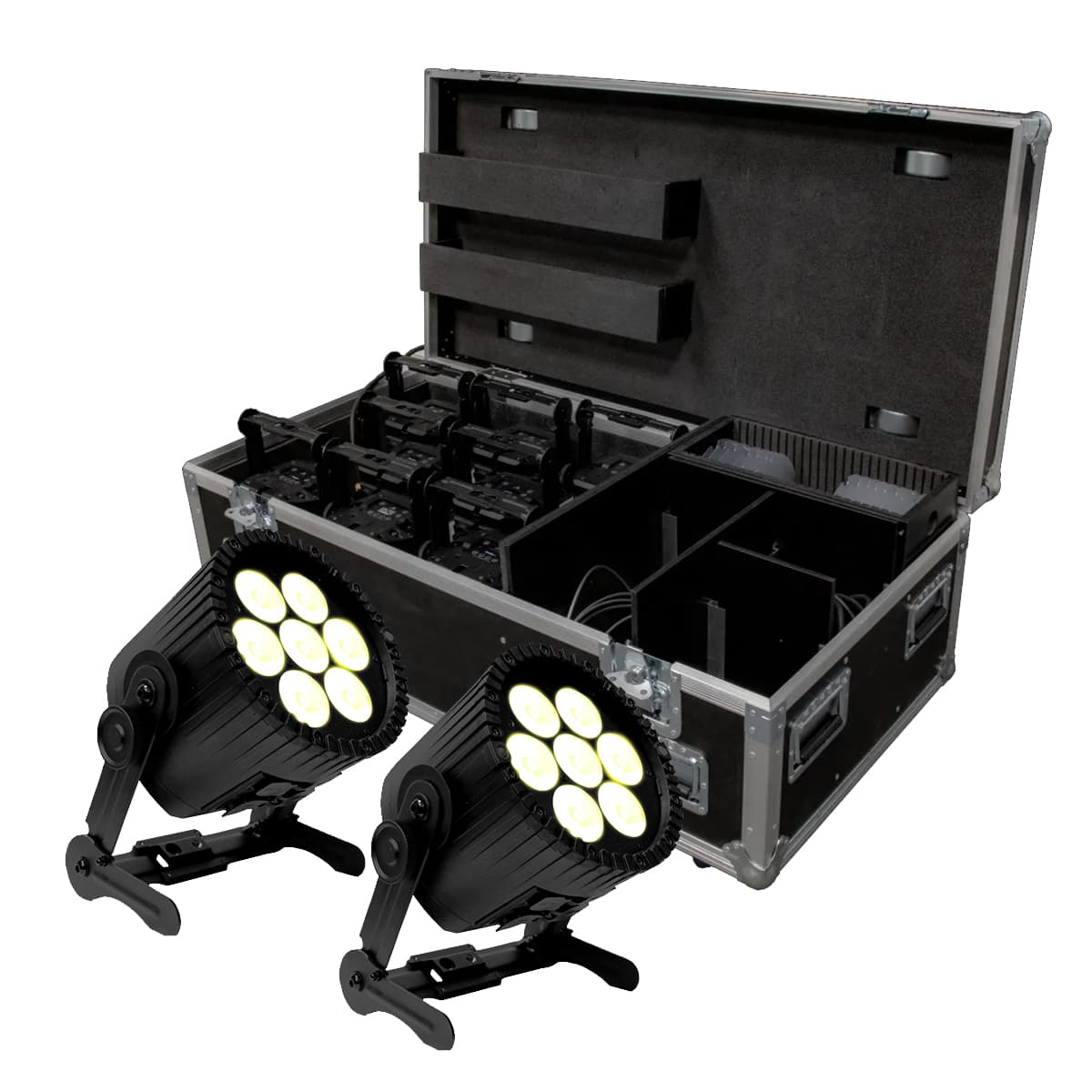

Astera AX-9 Par
Astera
AX-9 Par

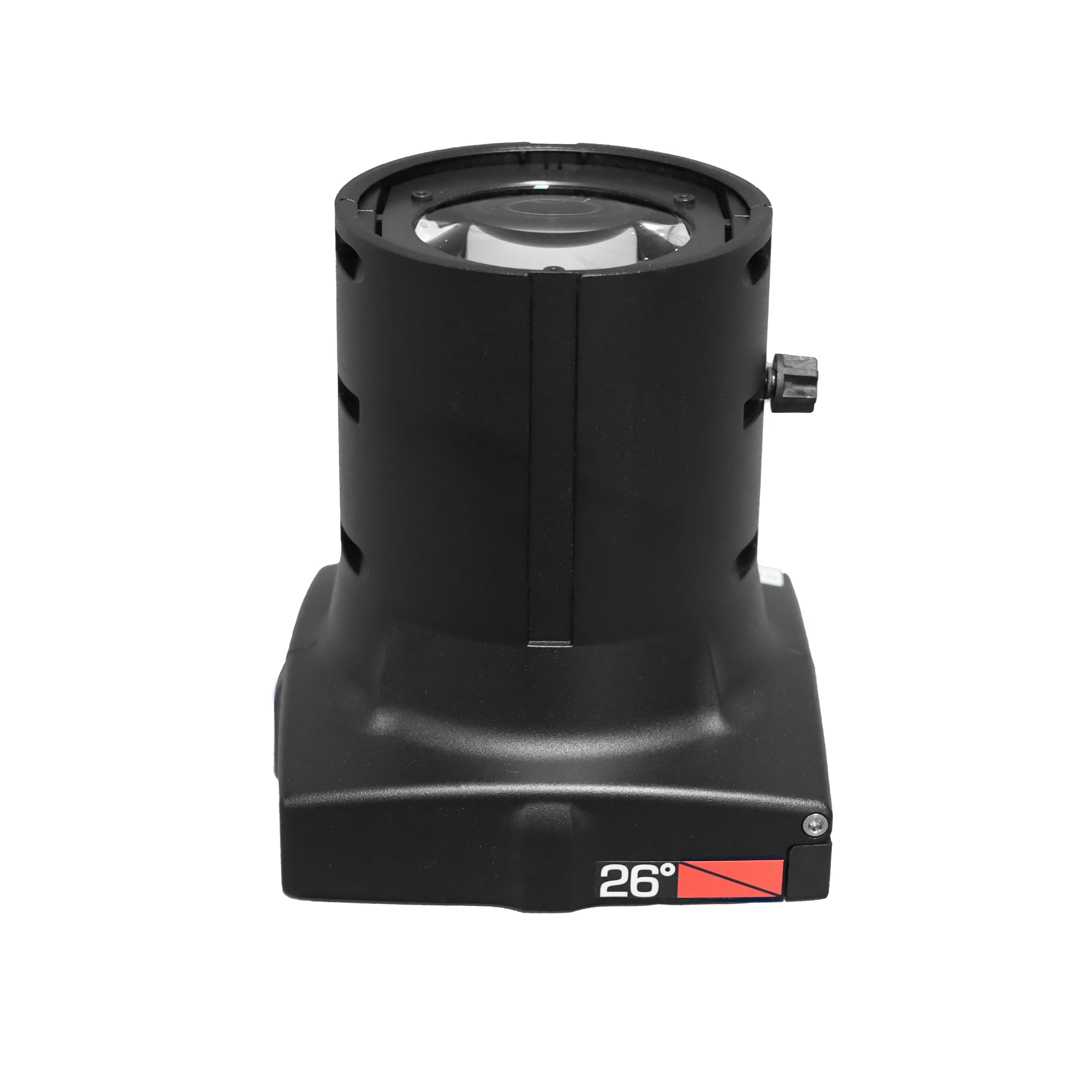

Eclipse FS-26 Degree Lens Tube
AC Lighting
Eclipse FS-26 Degree Lens Tube

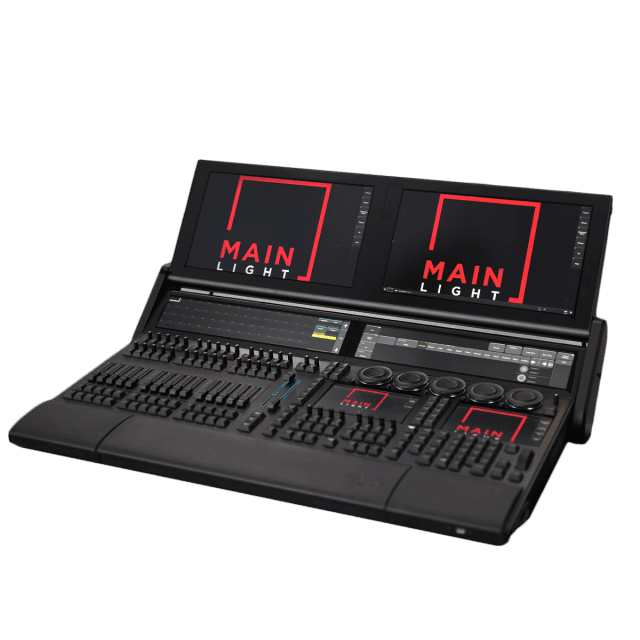

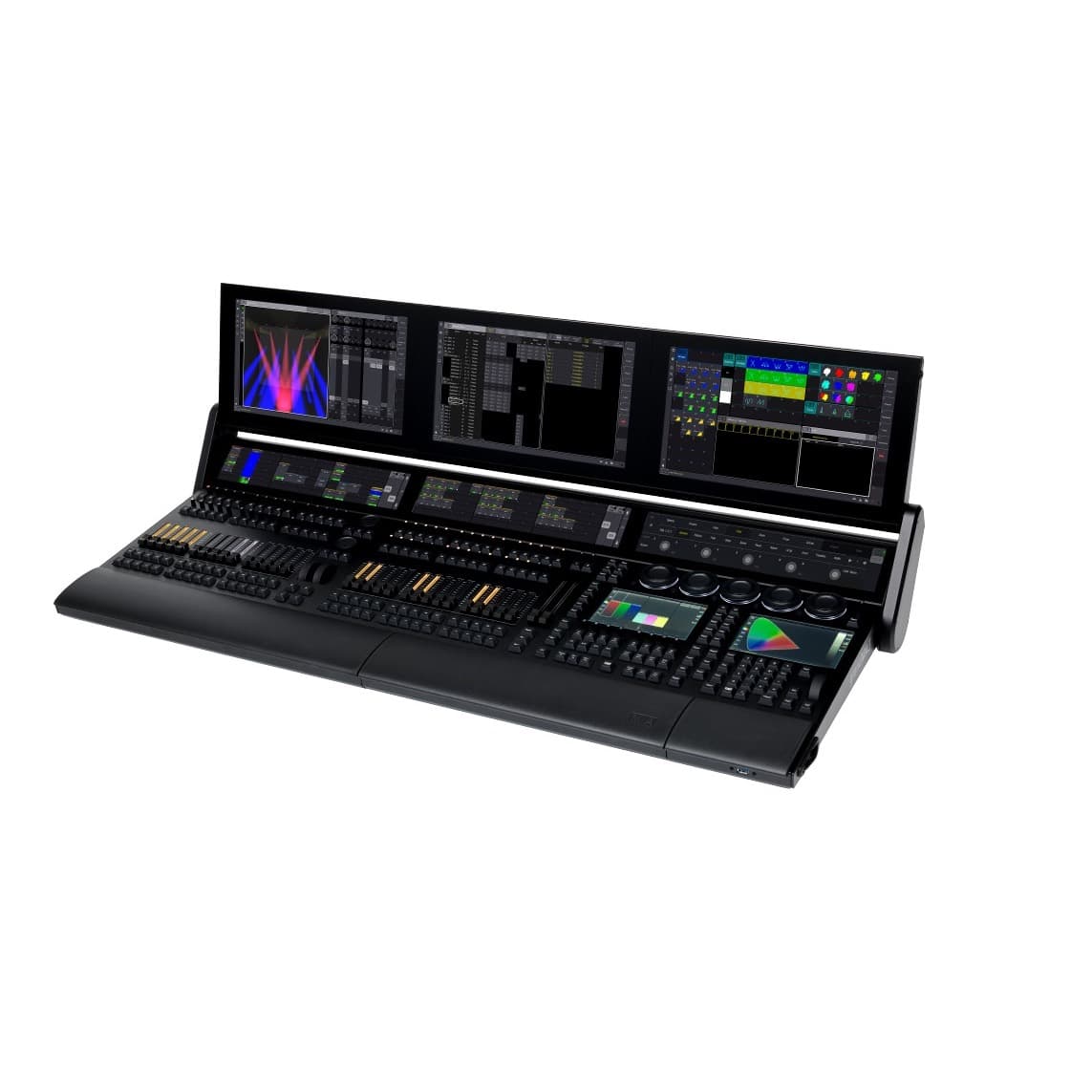

grandMA3 compact XT - 8,192 parameter console
MA Lighting
grandMA3 compact XT - 8,192 parameter console

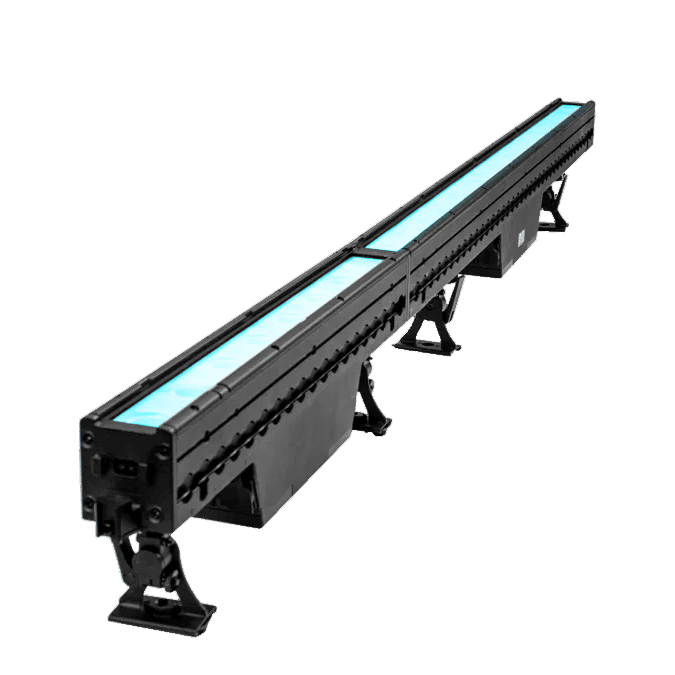

Astera Titan Tube 1M
