S4 Mini LED 5000k w/shutter barrel, black (120v Only)
Ready to ship
Details

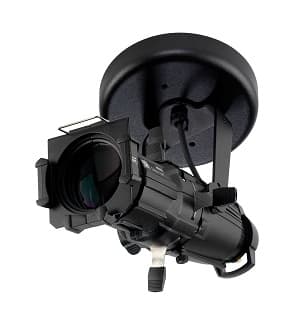

The Source Four Mini LED encapsulates the exceptional performance and reliability of the Source Four brand into a compact fixture, one-third the size of a traditional Source Four. At just nine inches in length, this versatile lighting solution is perfect for a variety of settings including museums, retail spaces, restaurants, and small theaters. Despite its small stature, the Source Four Mini LED delivers superior optics, crystal-clear image projection, and a bright, even field of light. This product is perfect for installations where space is at a premium but high-quality lighting is essential. The Source Four Mini LED brings the renowned performance of the Source Four brand to a compact, versatile fixture, ensuring that you don't have to compromise on quality, even in the smallest of spaces.
Shipping
Features
- Compact design: Just one-third the size of a traditional Source Four and nine inches long.
- Superior optics for crystal-clear image projection.
- Bright, even field of light.
- Available in four field angles: 19°, 26°, 36°, and 50°.
- 2.5-inch diameter lens.
- Multiple mounting options: Portable, canopy-mount, and track-mounted designs.
- Includes E-sized pattern holder and gel media frame.
- Range of additional accessories available.
- Compatible with OneTrack for in line/mains dimming applications.
- Rotating barrel ± 175°.
- Three-plane stainless-steel shutter blade assembly.
- Insulated rear handle.
- Rugged die-cast aluminum construction.
- Available in black, white, silver, or custom colors.
Specifications
- Length: 9 inches
- Diameter: 2.5 inches
- Weight: 2.4 lbs (Track Mount), 2.6 lbs (Portable and Canopy)
- LED Life: 35,000 hours
- Wattage: 12W (Typical), 14W (Max)
- Voltage Range: 100–120 V 50/60 Hz, 230–240 V 50/60 Hz
- Ambient Operating Temperature: 0°–40° C (32°–104° F)
- IP Rating: IP20 (Portable and Canopy), IP40 (Track)
- Available Color Temperatures: 2700 K, 3000 K, 4000 K, 5000 K
- CRI Options: 90 CRI (2700 K and 3000 K), 80 CRI (3000 K, 4000 K, 5000 K)
- Field Angle Options: 19°, 26°, 36°, 50°
- Mounting Options: Track, Portable, Canopy
- Color Options: Black, white, silver, custom color
- Warranty: 5 years (Fixture), 10 years (LED array)
