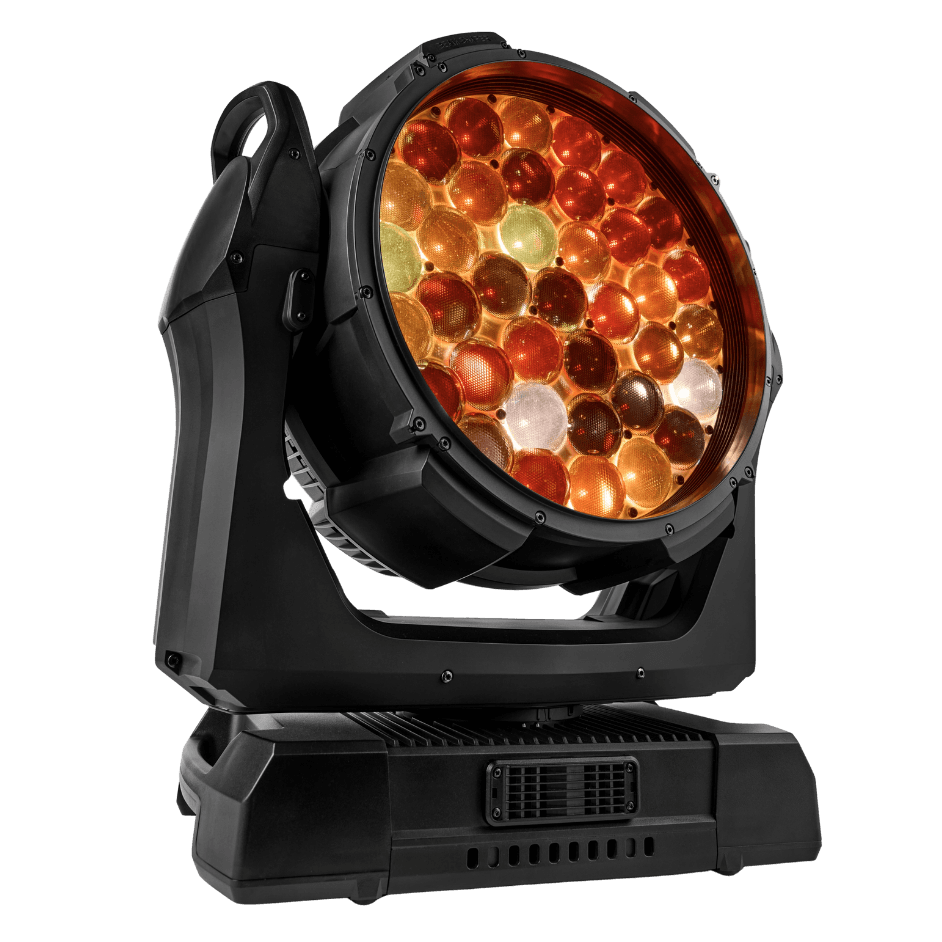

Mac Raven XIP
High-Output RGBL Moving Head Wash with Pixelated Aura Effects and XIP Weather Protection
Ready to ship
Details
The Martin MAC Aura Raven XIP is a high-output RGBL moving head wash built for large-scale indoor and temporary outdoor productions. Delivering up to 27,000 lumens through a 343 mm front lens, it combines a smooth wash field with individual control of 37 beam pixels and 234 Aura backlight pixels for powerful wash, beam, and eye-candy effects. DMX, Art-Net, sACN, and Martin P3 control provide flexible integration for touring, festivals, theater, broadcast, and corporate applications. This length and structure are intentionally close to Main Light’s existing rental-product style: concise product positioning followed by dedicated feature and specification sections rather than a long-form manufacturer description.
Shipping
Features
- 27,000-lumen output with a smooth, even wash field and soft edge.
- RGBL beam engine with Martin Full Gamut Color Calibration for flexible color reproduction.
- 37 individually controllable beam pixels for dynamic pixel effects and video-driven looks.
- 234-pixel RGB Aura backlight creates an immersive, video-style visual effect behind the main beam.
- 343 mm / 13.5 in. front lens with a 6.6°–35.3° half-peak beam-angle range and field angle extending to 51°.
- XIP smart weatherproof technology with an IP54 protection rating for indoor and temporary outdoor use.
- Martin P3 video mapping, plus DMX, RDM, Art-Net, RDM over Art-Net, and sACN control.
- Optional BeamShaper accessory expands beam-shaping capabilities for applications requiring more precise coverage.
- Battery-powered LCD interface with NFC for fixture configuration and addressing.
Specifications
- Beam Light Source: 37 × 40 W RGBL LEDs
- Aura Light Source: 234 × 0.30 W RGB LEDs
- Light Engine Output: 39,000 lumens
- Fixture Output – Wide: 27,000 lumens
- Fixture Output – Narrow: 23,000 lumens
- Peak Intensity – Narrow: 1,900,000 cd
- Front Lens Diameter: 343 mm / 13.5 in.
- Zoom Ratio: 1:5.3
- Beam Angle – Half Peak: 6.6°–35.3°
- Field Angle – Tenth Peak: 9.9°–51.0°
- Color System: RGBL Beam / RGB Aura
- CCT Range: 2,000 K–12,850 K
- CRI: ≥82
- CQS: ≥89
- TLCI: ≥84
- Beam Pixel Control: 37 pixels
- Aura Pixel Control: 234 pixels
- Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN, Martin P3
- DMX Modes: Compact, Basic, Extended, Ludicrous, Plaid, Compact Direct
- DMX Channels: 22, 38, 149, 266, 851, 22 depending on mode
- User Interface: Battery-powered backlit LCD with integrated NFC
- DMX Connection: 5-pin locking XLR TOP in/thru
- Ethernet Connection: etherCON TOP in/thru with fail-safe bypass
- Power Connection: Neutrik Rean powerCON TRUE1 TOP in/thru
- AC Power: 100–240 V AC, 50/60 Hz
- Maximum Power Consumption: 1120 W
- Typical Power Consumption: 1020 W
- Protection Rating: IP54
- Installation: Indoor or temporary outdoor use
- Width Across Yoke: 528 mm / 20.8 in.
- Maximum Height: 603 mm / 23.7 in.
- Base Width: 429 mm / 16.9 in.
- Base Depth: 285 mm / 11.2 in.
- Weight: 28.8 kg / 63.5 lb
- Maximum Ambient Temperature: 40°C / 104°F
- Minimum Ambient Temperature: -10°C / 14°F
