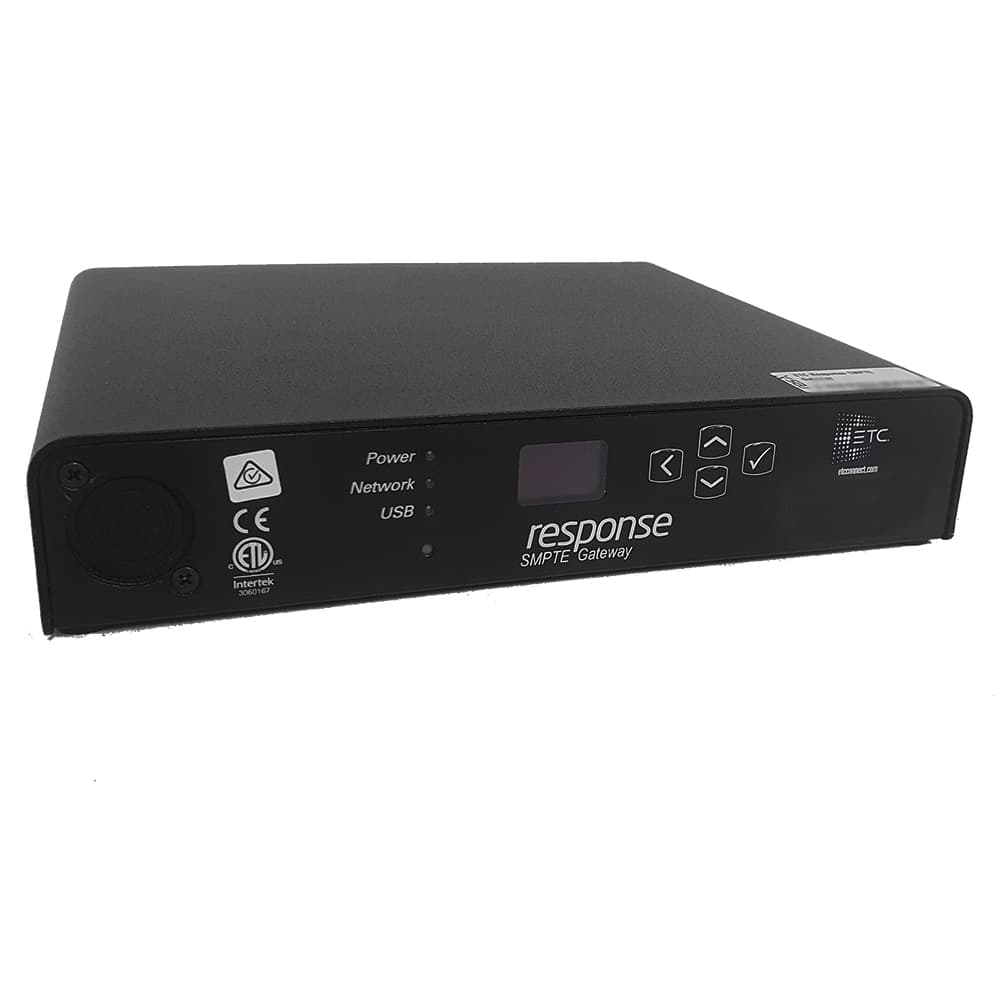

The Response SMPTE Gateway is an essential tool for modern multimedia shows, ensuring seamless synchronization through SMPTE LTC timecode. Designed to integrate effortlessly with your Eos-family console, this gateway receives timecode through a 3-pin XLR connector and includes a 3.5mm (1/8-inch) headphone jack to XLR converter for versatility. Its robust build and user-friendly interface make it a reliable component for any production environment.
The Response SMPTE Gateway is an essential tool for modern multimedia shows, ensuring seamless synchronization through SMPTE LTC timecode. Designed to integrate effortlessly with your Eos-family console, this gateway receives timecode through a 3-pin XLR connector and includes a 3.5mm (1/8-inch) headphone jack to XLR converter for versatility. Its robust build and user-friendly interface make it a reliable component for any production environment.
Shipping
This equipment has been inspected by a Main Light certified technician at one of our locations.
Features
- Synchronization: Distributes SMPTE over USB or Ethernet for precise multimedia show synchronization.
- Network Compatibility: Supports Net3/ACN (ANSI E1.17) and SMPTE over UDP for broad networking capabilities.
- User Interface: Features an OLED screen and a four-button UI for easy configuration and status monitoring.
- Flexible Power Options: Can be powered through PoE (IEEE 802.3af) or USB, offering versatility in various setups.
- Certifications:
- cETLus Listed
- CE compliant
- UKCA compliant
- EAC certified
- RoHS compliant
- WEEE compliant, ensuring it meets high standards for safety and environmental compliance.
Specifications
- Weight: 0.22 kg
- Connectivity:
- SMPTE – 3-Pin Female XLR Connector
- Type B USB female connection
- Power Supply:
- 5 V USB power
- PoE (IEEE 802.3af)
- Operating Conditions:
- Ambient temperature: 0°–40° C (32°–104° F)
- Ambient humidity: 5–95% non-condensing
- Physical:
- Finished in fine-textured, powder-coat paint with matching overlay
- Intuitive four-button interface
- Onboard OLED display for identification, status, and configuration
- Status and activity indicators: Blue (power), Green (network activity), Red/Green (USB activity)
