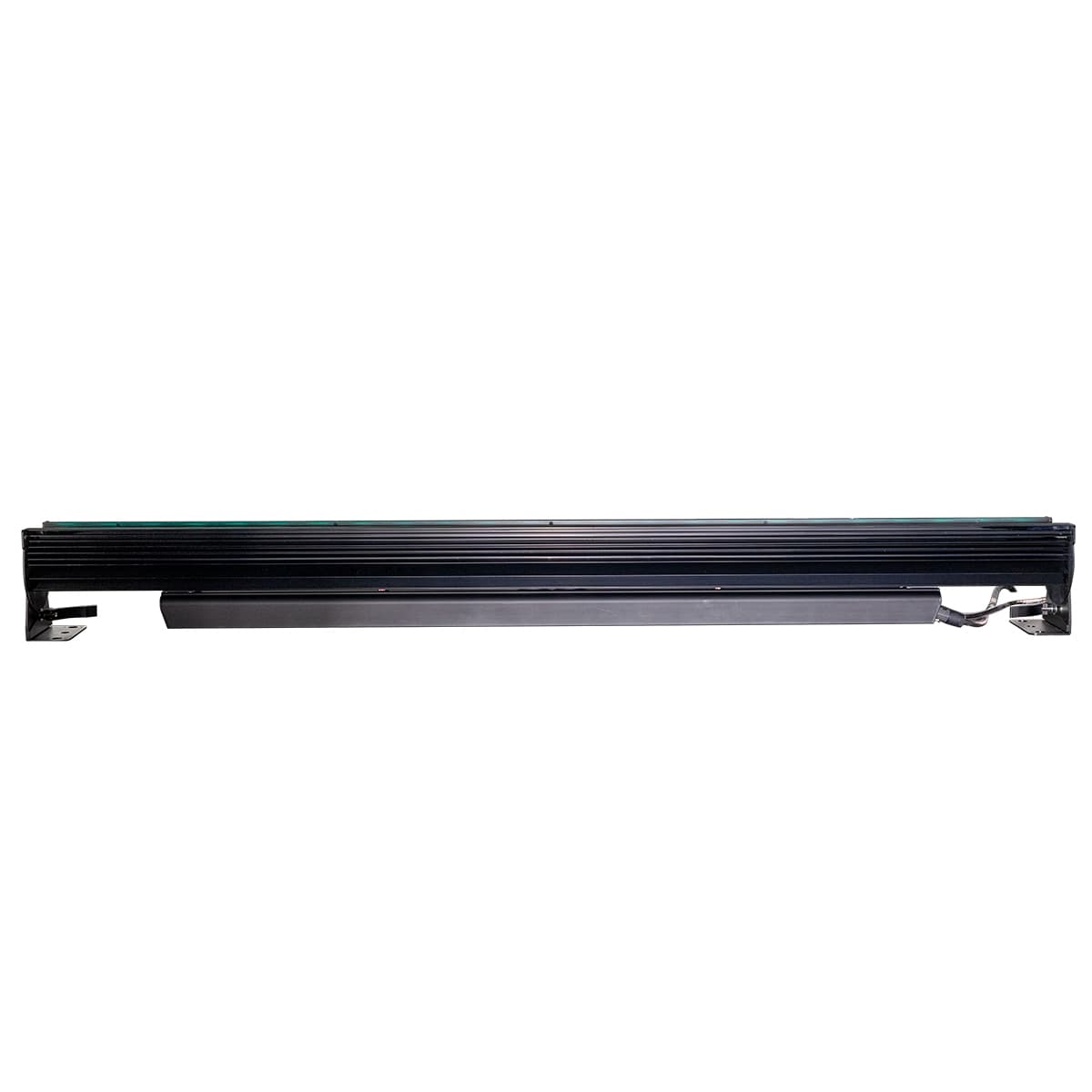

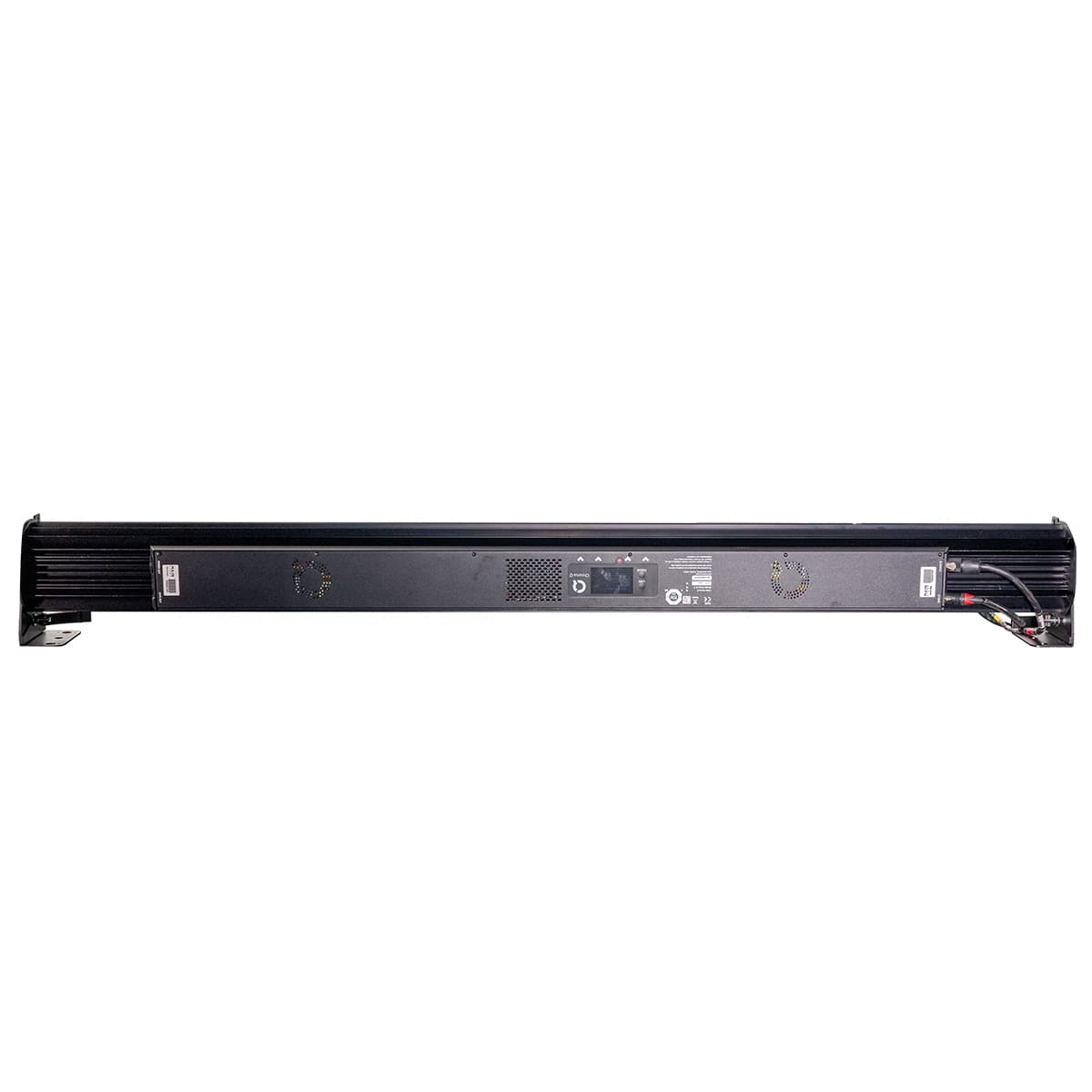

Chroma-Q Color Force II 72
Powerful and Versatile Batten for Cyclorama, Flood, and Wall Washing Applications.
$2,995
Depot Warranty:
60-Day Depot Warranty
Condition:
Good
Ships from:
United States
Used Sales This equipment has been inspected by a Main Light certified technician at one of our locations.
Details
The Color Force II™ by Chroma-Q is a multi award-winning batten that provides high output and superior color blending with smooth, even coverage. It is perfect for a wide range of applications including cyclorama, flood, and wall washing and is ideal for anyone in need of powerful and versatile used lighting. The fixture features four powerful homogenized cells per foot and can be grouped and controlled for creative flexibility. Additionally, this innovative optical system eliminates unsightly color shadowing, providing power to light almost 12m of cyclorama.
Downloads
Features
- Featuring Chroma-Q's proven award winning technology.
- Over 18,000 hot lumens will easily wash a 12m / 39 ft. cyc.
- Extremely smooth, uniform output.
- Homogenized RGBA color mixing.
- Pixel control to 76mm/3in increments.
- High CRI of 92.
- Theatrical grade dimming.
- Rugged extruded aluminium body.
- Built-in power supply.
- Chroma-Q calibration means: superior fixture-to-fixture consistency.
- Works great in any theatre, TV, concert touring, exhibitions or corporate event.
- Touchscreen user interface.
Specifications
- Product Code: CHCF272RGBA - Black
- Net Dimensions: 1,759mm x 165mm x 191mm / 69.25'' x 6.5'' x 7.5''
- Net Weight: 24 kg / 53 lb
- Shipping Dimensions: 1,855mm x 305mm x 320mm / 73" x 12" x 12.5"
- Shipping Weight: 27 kg / 59 lbs
- Power Supply: Built-in
- Power Input Rating: 100-240V AC 50-60Hz 800VA
- Power Factor: 0.96 @ 120V AC, 0.99 @ 240V AC
- Power Consumption: 800W @ 120V AC, 800W @ 240V AC
- Idle Power Consumption: 29W @ 120V AC, 32W @ 230V AC
- Typical Power & Current: Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
- Power Connectors In/Out: Neutrik powerCON TRUE1
- Data Connectors In/Out: Neutrik XLR 5-pin
- Control Protocol: ANSI E1.11 USITT DMX 512-A
- Cooling System: Forced
- Operating Temperature: 0°C to 40°C
- Construction: Anodised aluminum extrusion
- Colour: Black
- Built-In Hardware: Quick release lever for tilt adjustment
- IP Rating: IP20
- Approvals: CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/EN55024 :1998, ICES-003 :2004 & FCC Part 15 Subpart B: 2007, CSA C22. No. 166-M1983:R2008 UL 1573:2003; UL 8750
- LED Engines: 24
- Hot Lumen Output (Combined): 18,600
- Control Modes: Strobe Options, RGBA, RGB, HSI, x1, x2, x3, x4, x6, x8, x12, x24, Look Select, Master, Odd / Even, Skip2, Skip3, Skip6
- Dimming Curve: Theatrical
- Variable Effects Engine: Strobe, Strobe on Top, Strobe Random
- Optics: Fully homogenised
- Beam Angle: 22° (approx.)
- Beam Angle With Optional Cyc Optic: 80° x 35° (approx.)
- Beam Angle With Optional Border Optic: 43° (approx.)
- Beam Distribution: Asymmetrical direct illumination
- CCT: 1,000K - 10,000K
- Colour Gamut: Performance enhanced
- CRI: 92
- Lamp Life: L70 at 50,000 hours
