Elation

Smarty Hybrid

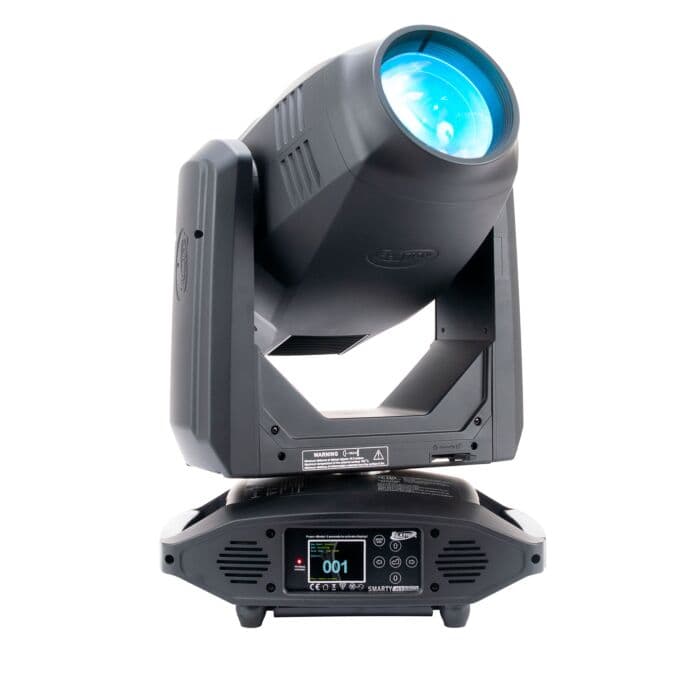

Elation Smarty Hybrid
Elation

Smarty Hybrid

In Stock and ready to ship rentals

Compact and versatile with beam, spot, and wash effects.

People who were interested in this product also liked:

Details

Downloads

Shipping

Details

The Elation Smarty Hybrid is a versatile and compact stage lighting fixture that combines beam, spot, and wash effects with full CMY color mixing. It features a powerful Philips MSD Platinum 200 Flex Lamp with "FLEX" technology, which offers high output and long lamp life of up to 6,000 hours. The Smarty Hybrid also includes 13 dichroic colors, 8 rotating-interchangeable glass and 12 static-stamped metal gobos, 16-facet and 4-facet linear rotating prisms, and a motorized zoom with full frost filter for wash effects. It supports multiple control protocols, including DMX, RDM, Art-NET, and sACN, and includes Elation's E-FLY internal wireless DMX transceiver for easy wireless control. With its compact size, motorized features, and advanced functionality, the Smarty Hybrid is an ideal fixture for a wide range of applications in the entertainment industry.

Ā

The Elation Smarty Hybrid is a versatile and compact stage lighting fixture that combines beam, spot, and wash effects with full CMY color mixing. It features a powerful Philips MSD Platinum 200 Flex Lamp with "FLEX" technology, which offers high output and long lamp life of up to 6,000 hours. The Smarty Hybrid also includes 13 dichroic colors, 8 rotating-interchangeable glass and 12 static-stamped metal gobos, 16-facet and 4-facet linear rotating prisms, and a motorized zoom with full frost filter for wash effects. It supports multiple control protocols, including DMX, RDM, Art-NET, and sACN, and includes Elation's E-FLY internal wireless DMX transceiver for easy wireless control. With its compact size, motorized features, and advanced functionality, the Smarty Hybrid is an ideal fixture for a wide range of applications in the entertainment industry.

Ā

Downloads

Shipping

This equipment has been inspected by a Main Light certified technician at one of our locations.

01

Features

  • 3-in-1 Smart Hybrid Beam, Spot, Wash Luminaire
  • New Philipsā„¢ MSD Platinum 200 Flex Lamp
  • Up To 6,000 Lamp Hours*
  • FLEX Lamp Technology from 190 to 280W + Hibernation Mode
  • Motorized Zoom: 1Ā° - 18Ā° Beam,Ā  3Ā° - 27Ā° Spot,Ā  5Ā° - 33Ā° Wash
  • Full Frost Filter for Wash Effects
  • Full CMY Color Mixing System
  • 13 Colors including Quad Color, CTB, CTO, and UV
  • 8 Rotating Interchangeable Glass Gobos
  • 12 Static-Stamped Metal Gobos
  • 16-Facet and 4-Facet Linear Rotating Prisms
  • Multiple CMY Color, Gobo, and Prism Macros
  • Motorized Focus with Auto-Focus Feature
  • DMX, RDM, Art-NET, and sACN Support
  • Elationā€™s E-FLYā„¢Internal Wireless DMX Transceiver
02

Specifications

SOURCE

  • Philipsā„¢ MSD Platinum 200 Flex 280W Lamp
  • Up To 6,000 Hour Lamp Life*
  • *Test lab conditions. May vary depending on several factors including but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, Dimming, and Lamp Mode.

PHOTOMETRIC DATA

  • 11,000 Total Lumen Output
  • 128,426 LUX 11,931 FC @49.2ā€™ (15m) (Min Zoom Beam)
  • 135,108 LUX 12,552 FC @16.4ā€™ (5m) (Min Zoom Spot)

Beam

  • Zoom Range 1Ā° - 18Ā°
  • Beam Angle 0.8Ā° - 7.1Ā°
  • Field Angle 1.9Ā° - 17.6Ā°

Spot

  • Zoom Range 3Ā° - 27Ā°Ā
  • Beam Angle 2.3Ā° - 20.1Ā°
  • Field Angle 3.4Ā° - 27.3Ā°

Wash

  • Zoom Range 5Ā° - 33Ā°
  • Beam Angle 2.6Ā° - 18.3Ā°Ā
  • Field Angle 4.8Ā° - 32.9Ā°

EFFECTS

  • Beam, Spot, and Wash Modes
  • Motorized Zoom
  • Full Frost Filter for Wash Effects
  • 16-Facet and 4-Facet Linear Rotating Prisms
  • CMY Color, Gobo, and Prism Macros
  • Motorized Focus with Auto-Focus Feature
  • High Speed Shutter and Strobe

COLOR

  • Full CMY Color Mixing System
  • 13 Colors including Quad Color, CTB, CTO, and UV

GOBOS

  • 2 Gobo Wheels
  • 8 Interchangeable-Rotating / Indexing Glass Gobos
  • 12 Static-Stamped Metal Gobos

CONTROL / CONNECTIONS

  • 2 DMX Channel Modes (20/34 channels)
  • Full Color 180Ā° Reversible LCD Menu Display
  • 6 Button Menu Control Panel
  • 16 Bit Resolution Adjustable Movement
  • DMX, RDM, Art-NET, and sACN Protocol Support
  • Elation E-FLY Internal Wireless DMX Transceiver
  • Hibernation Mode (Power Save)
  • 5pin DMX In/Out
  • RJ45 ethernet In/Out
  • IP65 Locking Power Cable In/Out
  • With Wired Digital Communication Network

SIZE / WEIGHT

  • Length: 15.2ā€ (385mm)
  • Width: 15.9ā€ (405mm)
  • Vertical Height: 24.0ā€ (610mm)
  • Weight: 49.0 lbs. (22.2 kg)

ELECTRICAL / THERMAL

  • AC 100-240V - 50/60Hz
  • 480W Max Power Consumption
  • 14Ā°F to 113Ā°F (-10Ā°C to 45Ā°C)

APPROVALS / RATINGS

  • CE | cETLus | IP20
