Robe

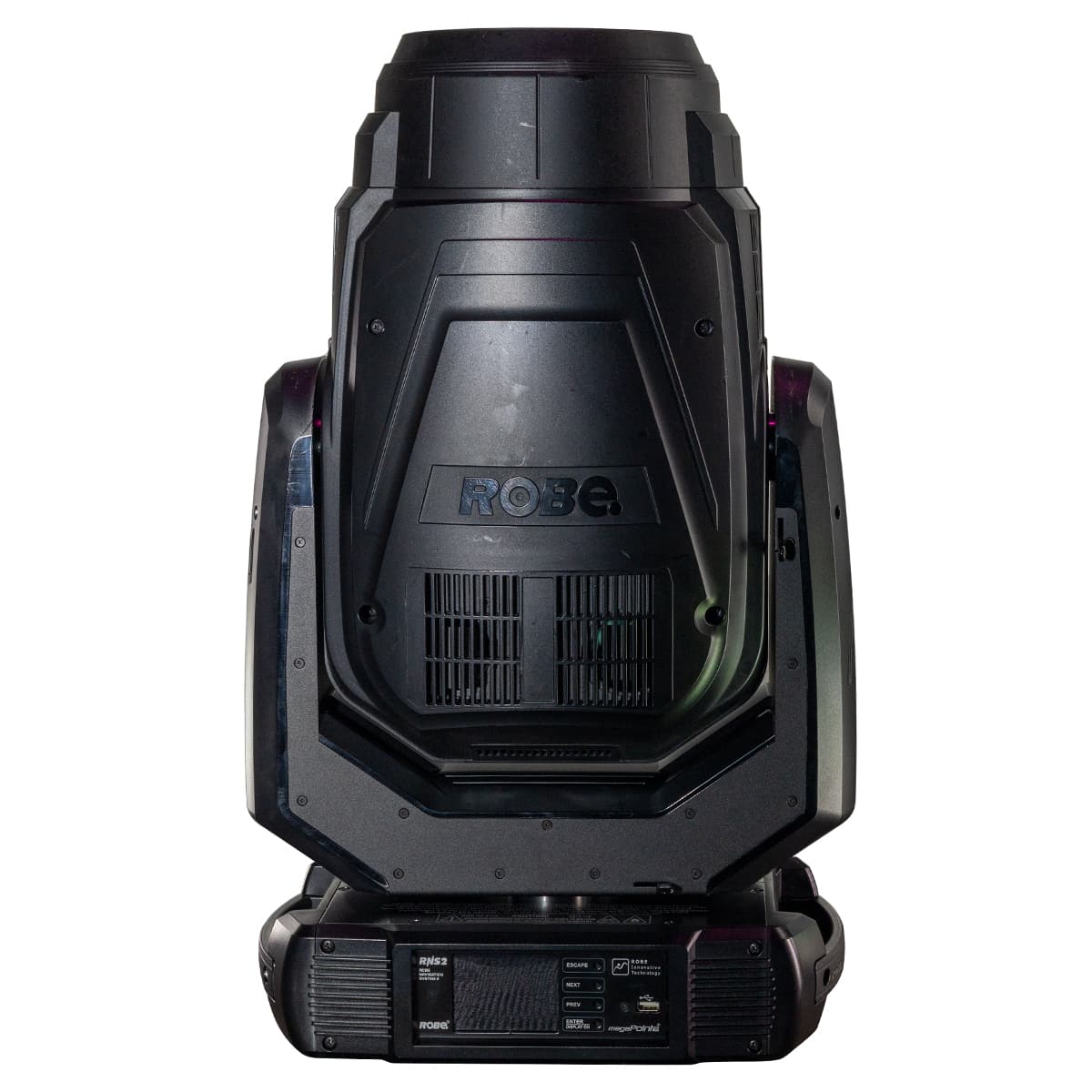

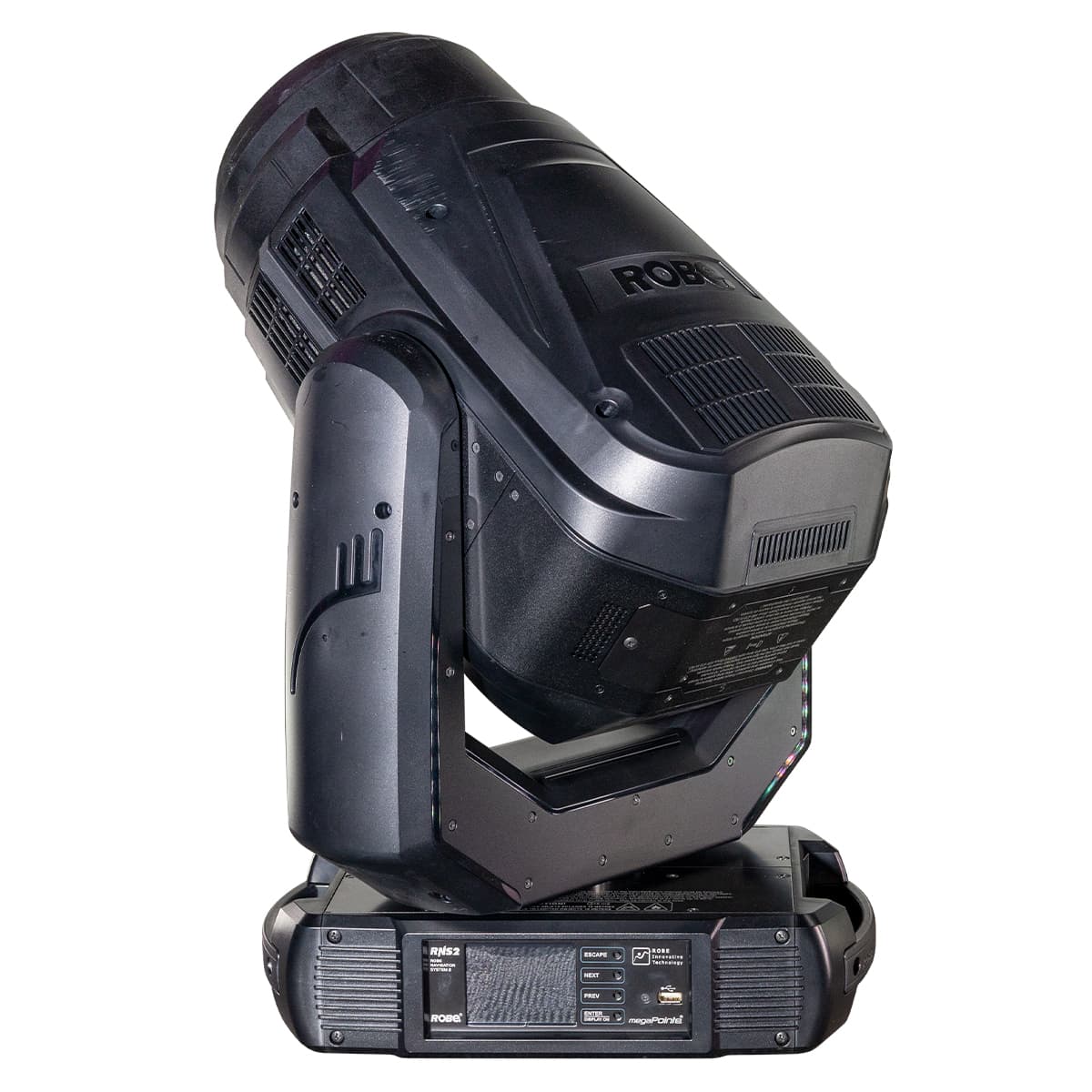

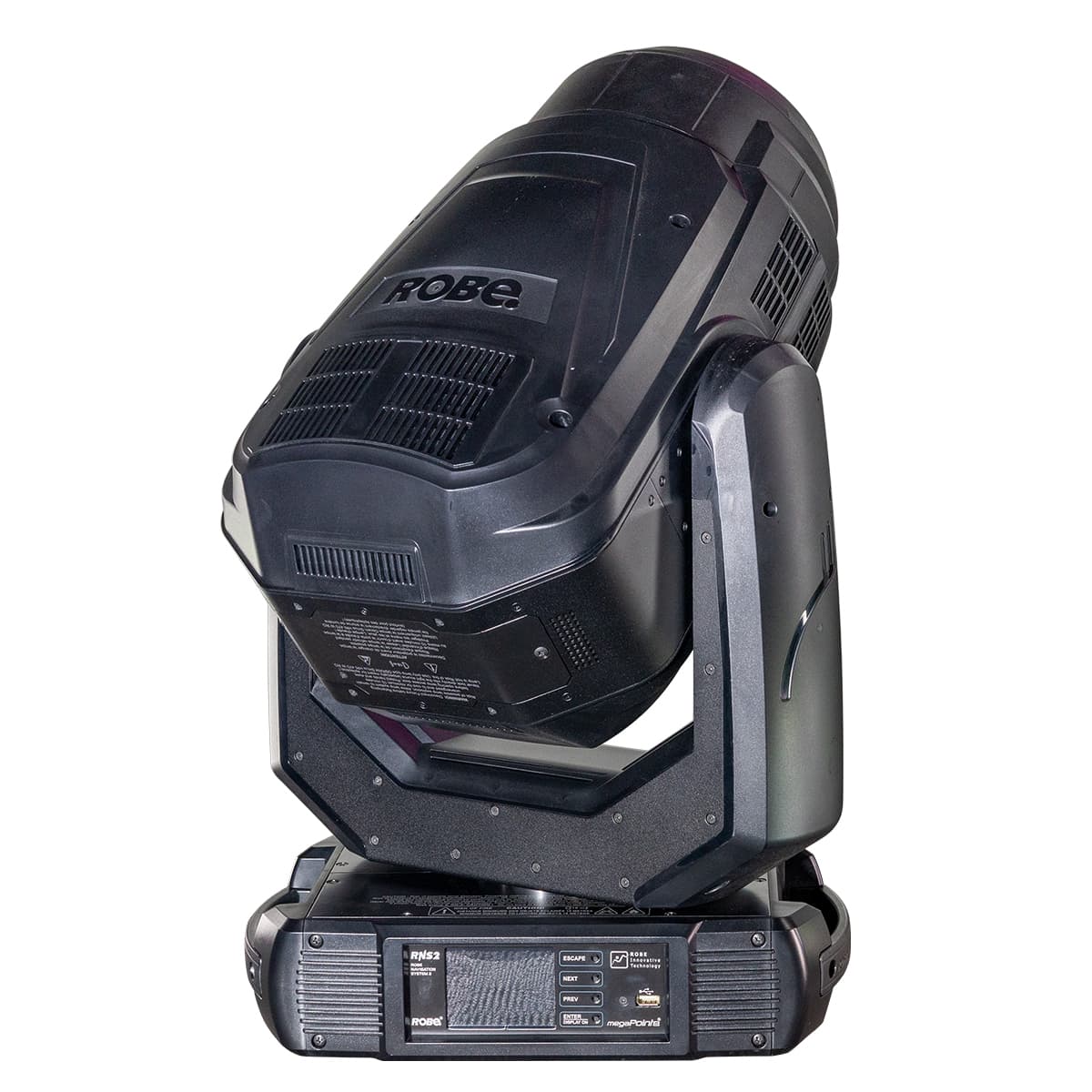

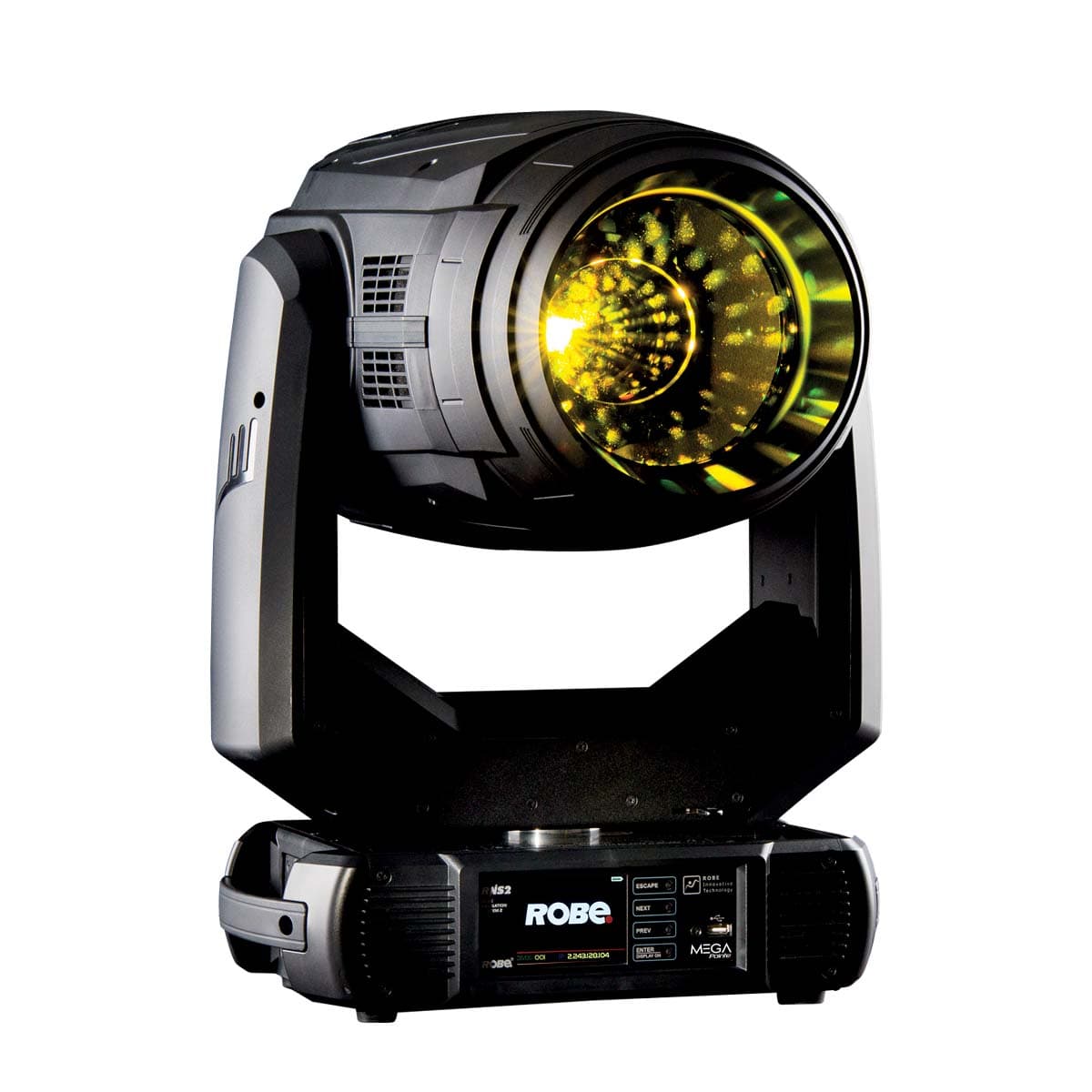

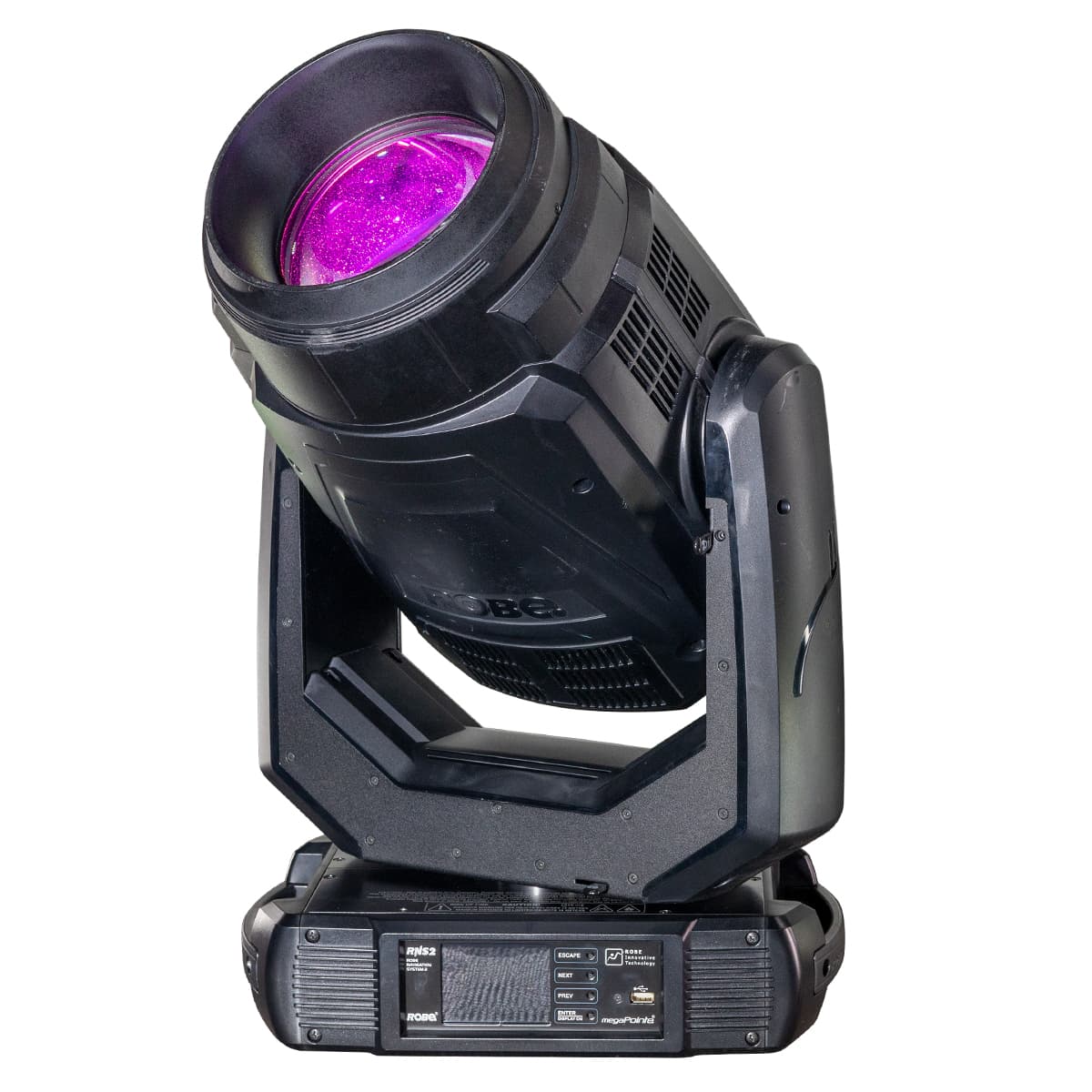

MegaPointe

Robe

MegaPointe

$8,095

In Stock and ready to ship in the U.S.

Buy the ROBE MegaPointe and take your event to the next level with its MEGA features and precision

Depot Warranty: 30-Day Depot Warranty

Condition: Excellent

Ships from: United States

People who were interested in this product also liked:

Details

Downloads

Shipping

Details

The ROBE MegaPointe takes the all-in-one fixture to the next level with its MEGA features, including bright, sharp parallel beams, precise movement, and smooth CMY color mixing. With its 470W lamp and cutting-edge optical system, the MegaPointe delivers crystal clear, razor-edged beams that can be adjusted from a punchy 1.8 to a wide 42 degrees. Thanks to its static and rotating gobos, the MegaPointe produces precision in-air effects and projected images with a sharp, high-contrast, flat field. The newly designed effects engine also offers 12 varying beam and ‘flower’ effects, while innovative shutter emulation allows you to shape the beam and unleash your creativity.

The ROBE MegaPointe takes the all-in-one fixture to the next level with its MEGA features, including bright, sharp parallel beams, precise movement, and smooth CMY color mixing. With its 470W lamp and cutting-edge optical system, the MegaPointe delivers crystal clear, razor-edged beams that can be adjusted from a punchy 1.8 to a wide 42 degrees. Thanks to its static and rotating gobos, the MegaPointe produces precision in-air effects and projected images with a sharp, high-contrast, flat field. The newly designed effects engine also offers 12 varying beam and ‘flower’ effects, while innovative shutter emulation allows you to shape the beam and unleash your creativity.

Downloads

Shipping

Used Sales This equipment has been inspected by a Main Light certified technician at one of our locations.

01

Features

Light Source

  • Osram Sirius HRI 470 W RO

Light Output

  • MEGA bright 2,215,000 lx @ 5 m

Zoom Range

  • 1.8°– 21° beam mode
  • 3°– 42° spot mode

Effects

  • Rotating and static gobo wheel
  • Animation wheel
  • 12 beam and flower effects
02

Specifications

  • Lamp: Discharge short arc lamp with integrated reflector
  • Approved Model: Osram Sirius HRI 470 W RO
  • Lifetime:
    • 1,500 hours @ 470W Standard mode
    • 2,000 hours @ 380W Eco mode
  • CRI: 80/90
  • CCT Light Output: 6,300 K
  • CCT Lamp: 7,500 K
  • Control: Automatic and remote on/off
  • Ballast: Electronic

Optical System

  • Design: Robe’s proprietary optical design (Patent pending)
  • Zoom Optical System: 14:1
  • Zoom Range:
    • 1.8°– 21° beam mode
    • 3°– 42° spot mode
  • Output Lens Diameter: 150 mm
  • Total Lumen Output: 20,375 lm
  • Light Output: Various modes listed
    • For example, Beam mode 1.8°: 2,215,000 lx @ 5 m

Dynamic Effects

  • CMY: 0 – 100% for Cyan, Magenta, Yellow
  • Colour Wheel: 13 dichroic filters + white
  • Rotating Gobo Wheel: 9 rotating, indexable, and replaceable gobos + open
  • Static Gobo Wheel: 14 gobos + open
  • Animation Wheel: Aluminium, used alone or with gobos, variable speed
  • Innovative Effect Engine: 6 prisms on two wheels, 12 effects (Patent pending)
  • Beam Shaper: Emulates framing shutters, rotatable (Patent pending)
  • Frost: Variable 1° (light) and 5° (medium)
  • Motorized Zoom and Focus
  • Remote Hot-spot Control: Various modes
  • Pre-programmed Strobe & Pulse Effects
  • Dimmer: 0 – 100%

Control and Programming

  • Setting & Addressing: ROBE Navigation System 2 (RNS2)
  • Display: QVGA Robe touch screen with multiple features
  • Protocols: Various, including DMX-512, RDM, ArtNet, etc.
  • Wireless CRMX™ Technology: On request
  • Control Channels: 39, 34
  • Resolution: Various modes for Pan/Tilt, Colour wheel, CMY, etc.

Movement

  • Pan Movement: 540°
  • Tilt Movement: 270°
  • Movement Control: Standard and Speed
  • EMS™: Electronic Motion Stabilizer (Patent pending)

Rotating Gobos

  • Glass Gobos: 9 rotating gobos
  • Dimensions and Material: Various specifications
  • "SLOT&LOCK" System: For easy replacement

Static Gobos

  • Aluminium Wheel: 10 gobos & 4 beam reducers + open

Thermal Specification

  • Temperature Ranges: Various, maximum and minimum

Electrical Specification and Connections

  • Power Supply: Auto-ranging
  • Voltage Range: 100-240 V, 50/60 Hz
  • Power Consumption: 670 W at 230 V / 50 Hz
  • Connectors: Various, including Neutrik powerCON TRUE1

Approvals

  • CE Compliant
  • cETLus Compliant

Mechanical Specification

  • Dimensions: Various, including height, width, depth
  • Weight: 22 kg (48.5 lbs)

Rigging

  • Mounting Positions: Horizontal or vertical
  • Mounting Points: Various, including 1/4-turn locking points
  • Pan and Tilt Transport Locks
  • Safety Cable Attachment Point
