Obsidian

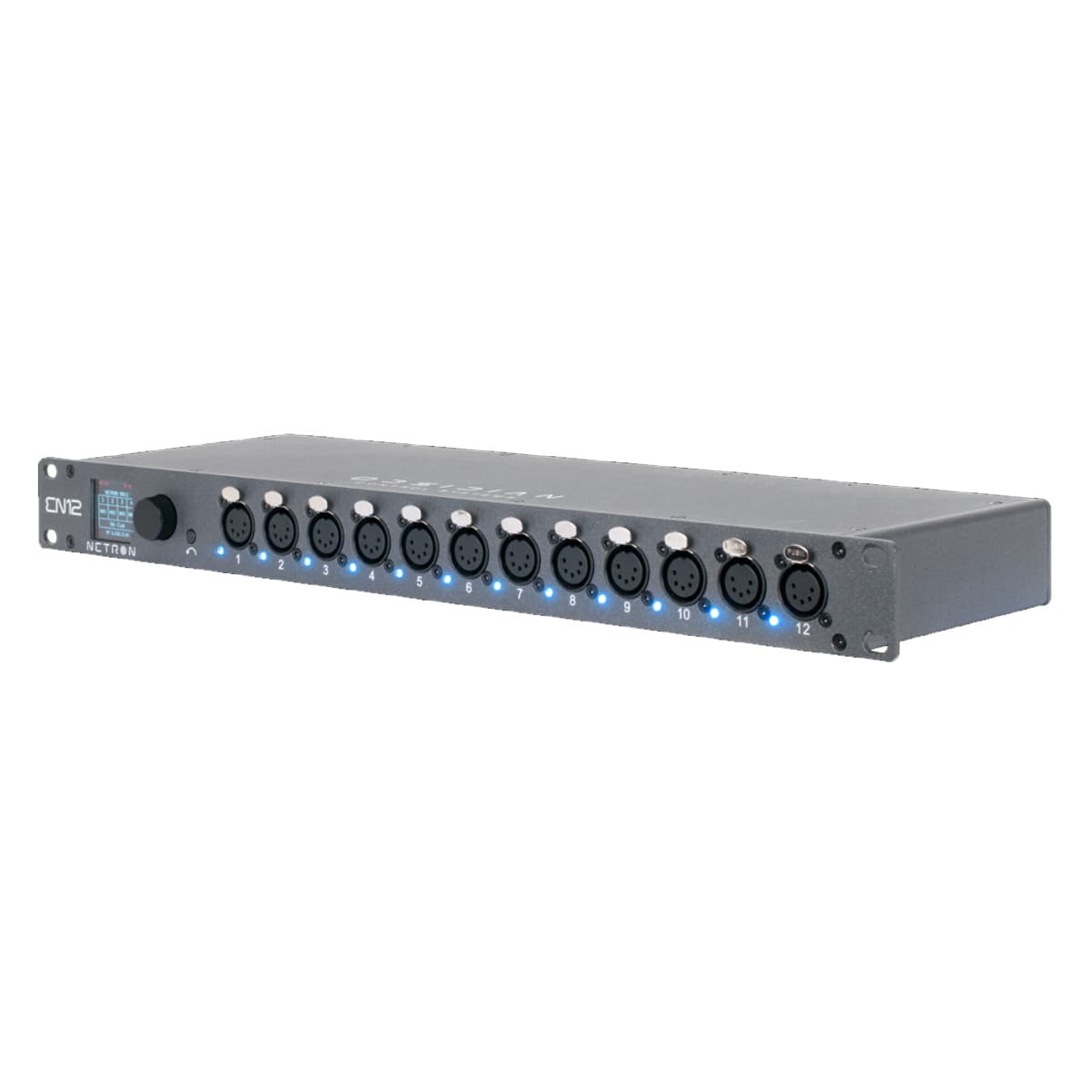

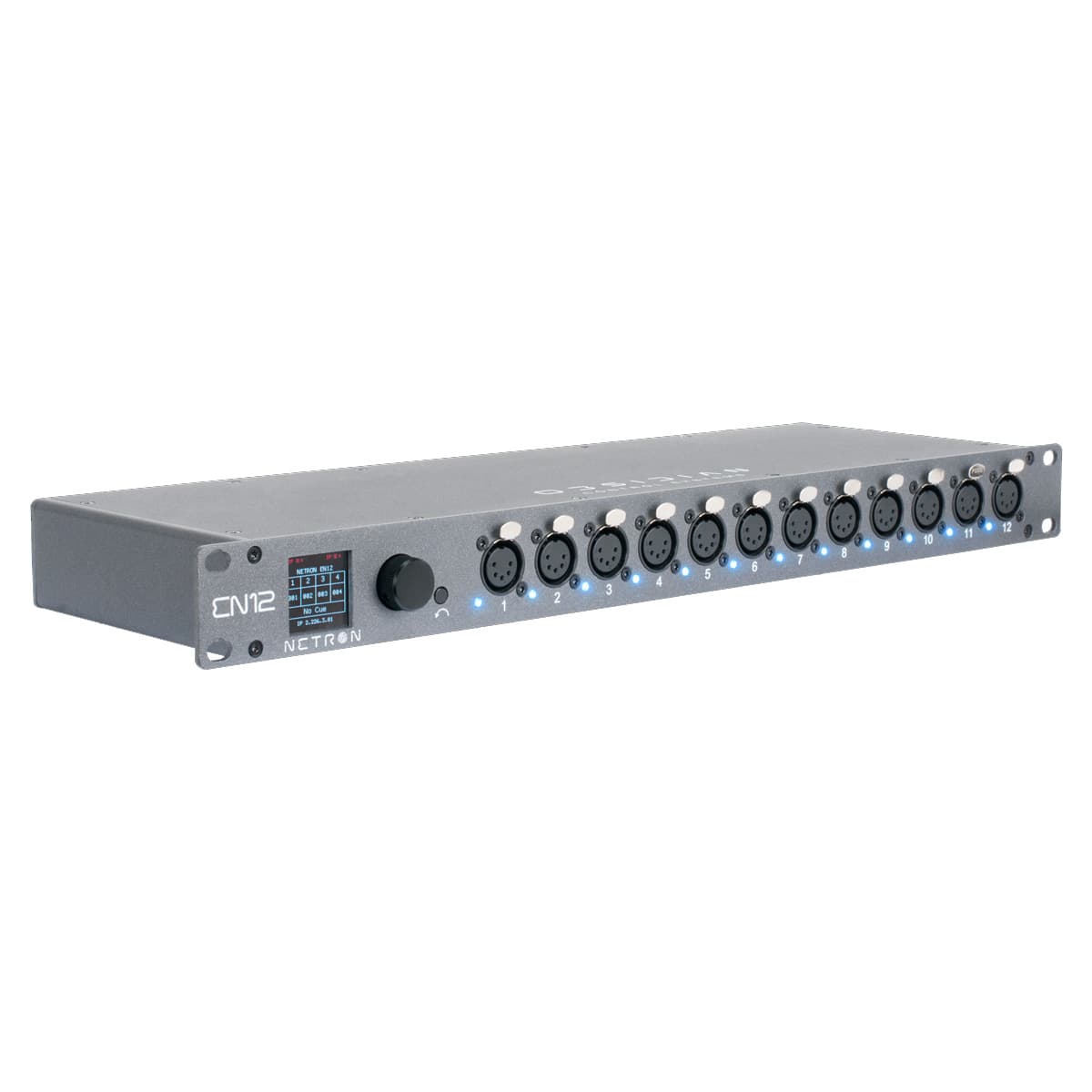

Netron EN12 12-Port Node (ArtNet/sACN)
Ready to ship
Details
The Netron EN12 is a robust Ethernet to DMX gateway with twelve RDM-compatible ports, perfect for live productions or installations needing numerous DMX connections. It’s simple to set up with various integrated presets and advanced merge and routing capabilities. With features like contact closures for recalling presets and internal cues, it's versatile and efficient for any professional lighting setup.
Shipping
Features
- RDM, Artnet, and sACN support
- Factory and user presets for easy setups
- Line Voltage or POE powered
- 1.8” OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Customizable routing and merging options
- Remote configuration via internal webpage
- Contact closures for cue or preset recall
- Powder-coated aluminum rackmount housing
- Unlocks ONYX NOVA 4 Universe License
Specifications

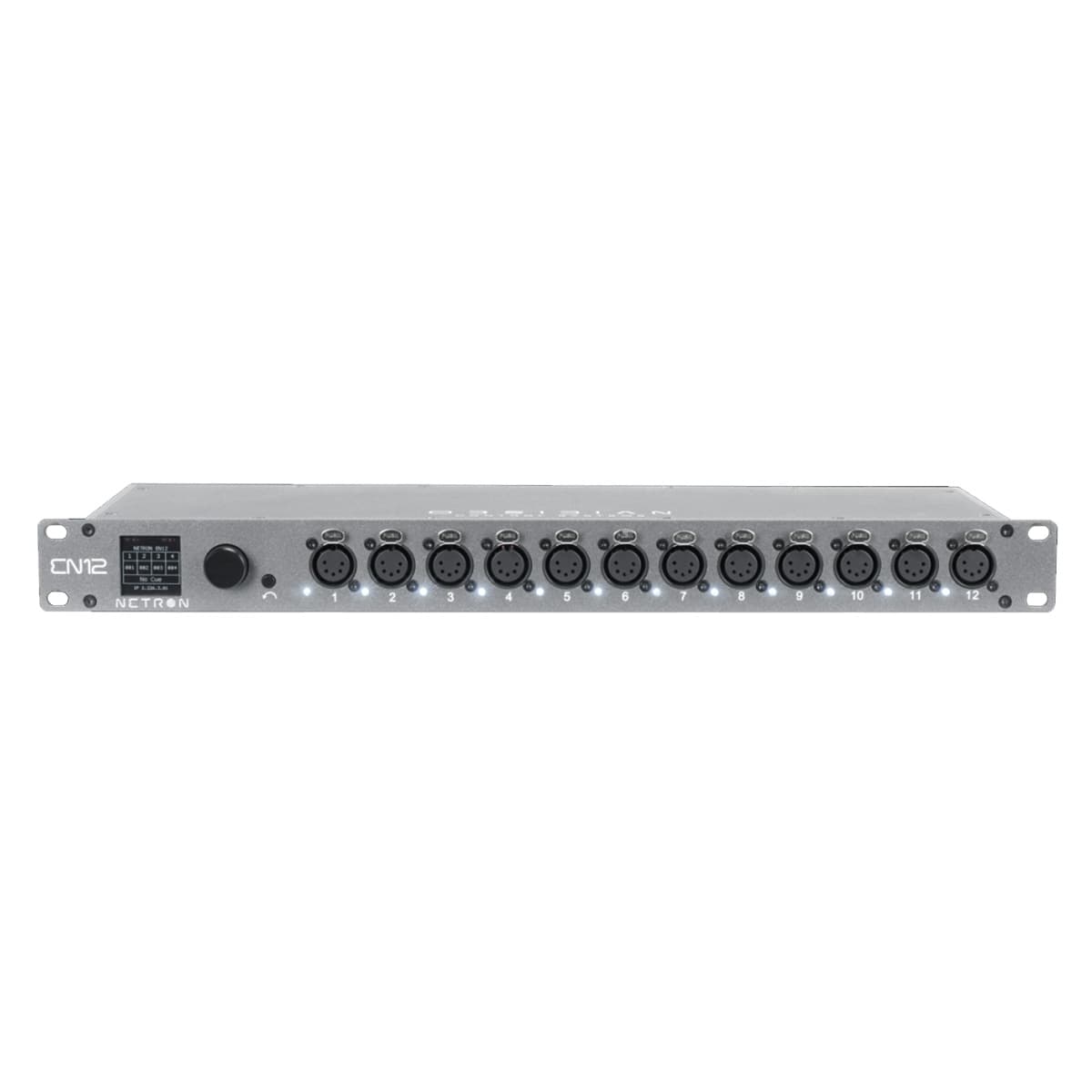

Front:
- (12) 5-pin DMX/RDM optically isolated ports
- Ports are bidirectional for DMX In and Output
- Full color OLED display
- Encoder with Push to Select / Exit Button

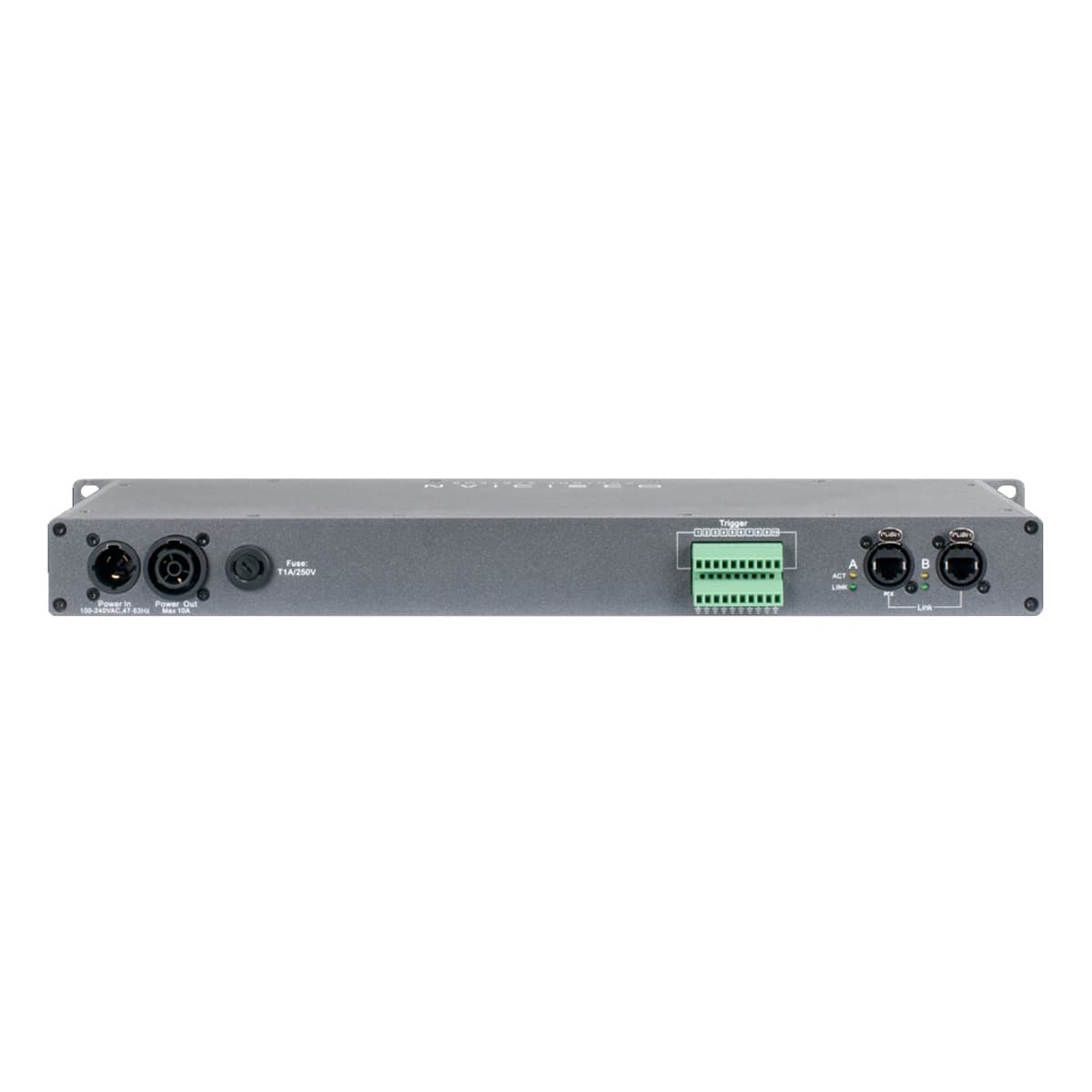

Back:
- (2) Locking RJ45 Ethernet network inputs
- (10) Contact Closures (Terminal Block)
- Locking Power In/Thru
Physical:
- Length: 482.5 mm (19 in.)
- Width: 146 mm (5.7 in.)
- Height: 44 mm (1.7 in.)
- Weight: 1.82 kg (4 lbs)
Electrical:
- 100-240 V nominal, 50/60 Hz
- POE 802.3af
- Power Consumption: 9W
