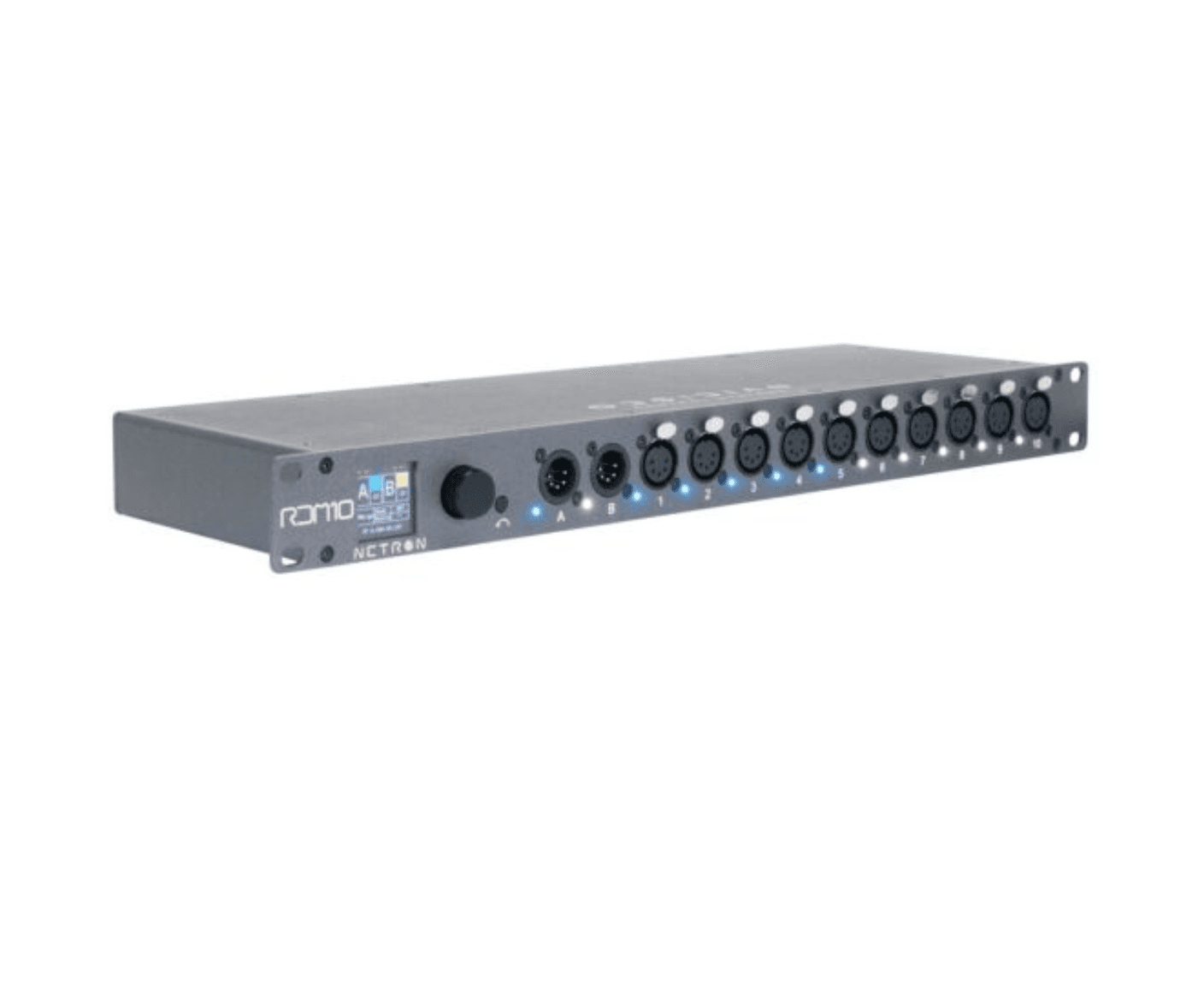

Netron RDM10 Opto/Node
Ready to ship
Details
Introducing the NETRON RDM 10, a pioneering hybrid splitter that combines the functionality of a 10 port RDM Splitter, Merger, and EtherDMX Gateway into one powerful device. With dual DMX input, 10 assignable DMX outputs, and an integrated 2 Universe Artnet/sACN node, this unit offers unparalleled versatility to meet a diverse range of application needs. RDM 10 has a configurable DMX refresh rate and features options for backup and signal loss through its dual DMX inputs. Its remote configuration capabilities are accessible via an internal webpage, ensuring that you can adjust settings conveniently from a distance. The 1.8” OLED Display with a rotary knob enhances the user experience with easy visibility and control. This unit excels in its capability to store up to 99 internal cues with adjustable fade and delay times. Its unique contact closures enable cue or preset recall, offering you a practical solution for managing multiple tasks. The RDM 10 comes with a powder-coated aluminum rackmount housing, ensuring durability and longevity. The NETRON RDM 10 also unlocks the ONYX NOVA 4 Universe License, extending its capabilities even further. The unit's front includes two 5pin DMX inputs, ten 5pin Opto-Isolated DMX outputs, a full-color OLED display, and an encoder with a push-to-select/exit button. The back features an additional two 5pin DMX inputs parallel with the front, two 5pin DMX through, two locking RJ45 Ethernet Network In, and ten contact closures via a terminal block.
Downloads
Shipping
Features
Features:
- Dual DMX input for backup and signal loss options.
- 10 assignable DMX outputs for a variety of applications.
- Integrated 2 Universe Artnet/sACN node for enhanced connectivity.
- Configurable DMX refresh rate for flexibility in usage.
- Remote configuration via internal webpage for convenience.
- 1.8” OLED Display with rotary knob for ease of control.
- 99 Internal cues with customizable fade and delay time.
- Contact closures for cue or preset recall.
- Powder-coated aluminum rackmount housing for durability.
- Unlocks ONYX NOVA 4 Universe License for extended capabilities.
Specifications
Specifications:
Front Panel:
- (2) 5pin DMX Input
- (10) 5pin Opto-Isolated DMX Outputs
- Full color OLED display
- Encoder with Push to Select / Exit Button
Back Panel:
- (2) 5pin DMX Input (parallel with front)
- (2) 5pin DMX Through
- (2) Locking RJ45 Ethernet Network In
- (10) Contact Closures (Terminal Block)
- Locking Power In/Thru
Physical:
- Length: 482.5 mm (19 in.)
- Width: 146 mm (5.7 in.)
- Height: 44 mm (1.7 in.)
- Weight: 1.82 kg (4 lbs)
Electrical:
- Power: 100-240 V nominal, 50/60 Hz
- POE 802.3af
Approvals / Ratings:
- cETLus / CE / IP20
