Netron EP4 4-Port Node (ArtNet/sACN)
Ready to ship
Details

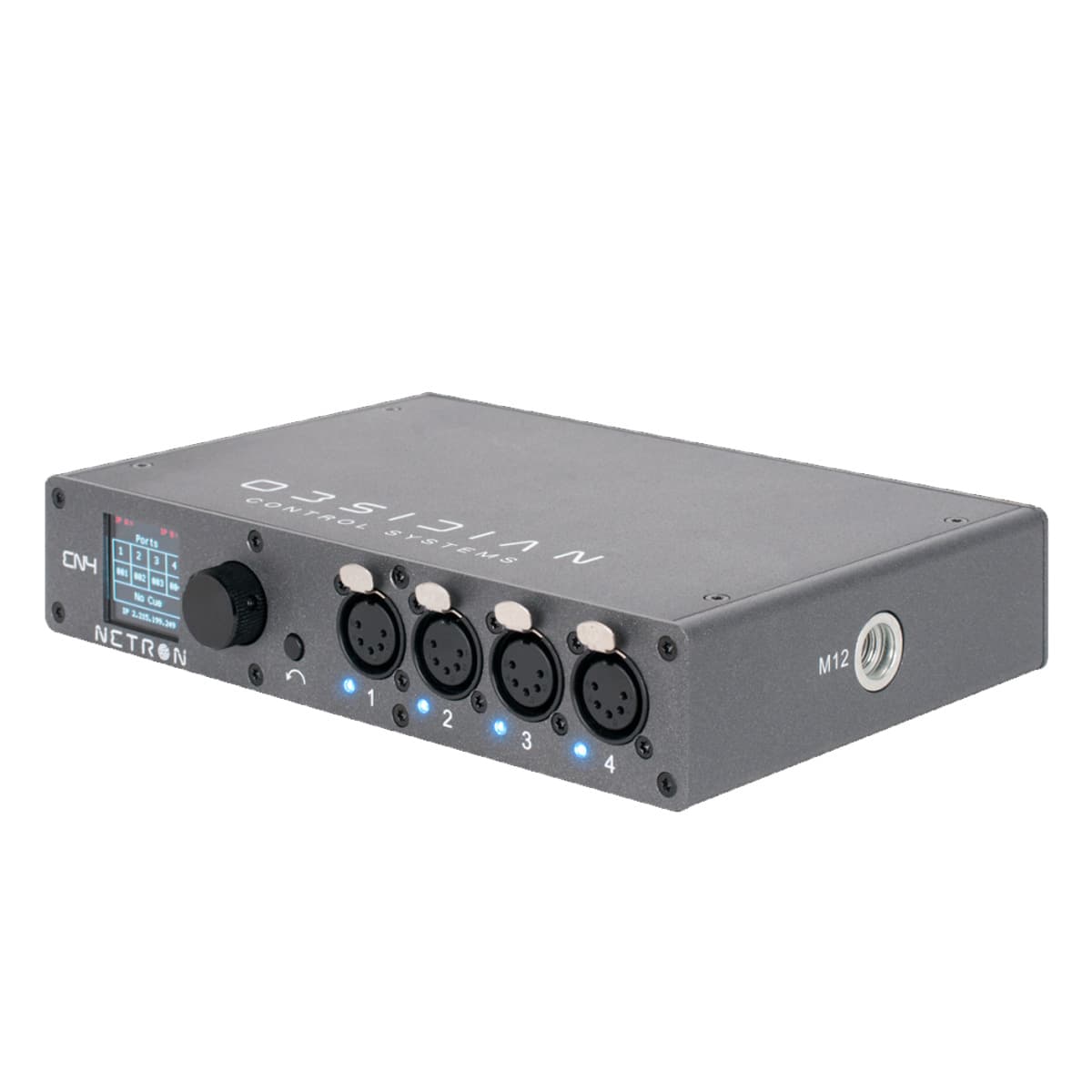

The Netron EN4 is a robust Ethernet to DMX gateway featuring four RDM compatible ports. It is designed for live productions and installations with durable housing and high-performance processing capabilities. The EN4 offers flexible mounting options to fit any situation, making it an ideal choice for the powerful ONYX NOVA Edition.
Shipping
Features
- RDM, Artnet, and sACN support
- Factory and user presets for plug-and-play setups
- Line Voltage or POE powered
- 1.8” OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Remote configuration via internal webpage
- Powder-coated aluminum ½ rack housing
- Unlocks ONYX NOVA 4-Universe License
- NETRON CLU for remote configuration and firmware updates
- Standalone, truss-mount, wall-mount, and DIN Rail mounting options

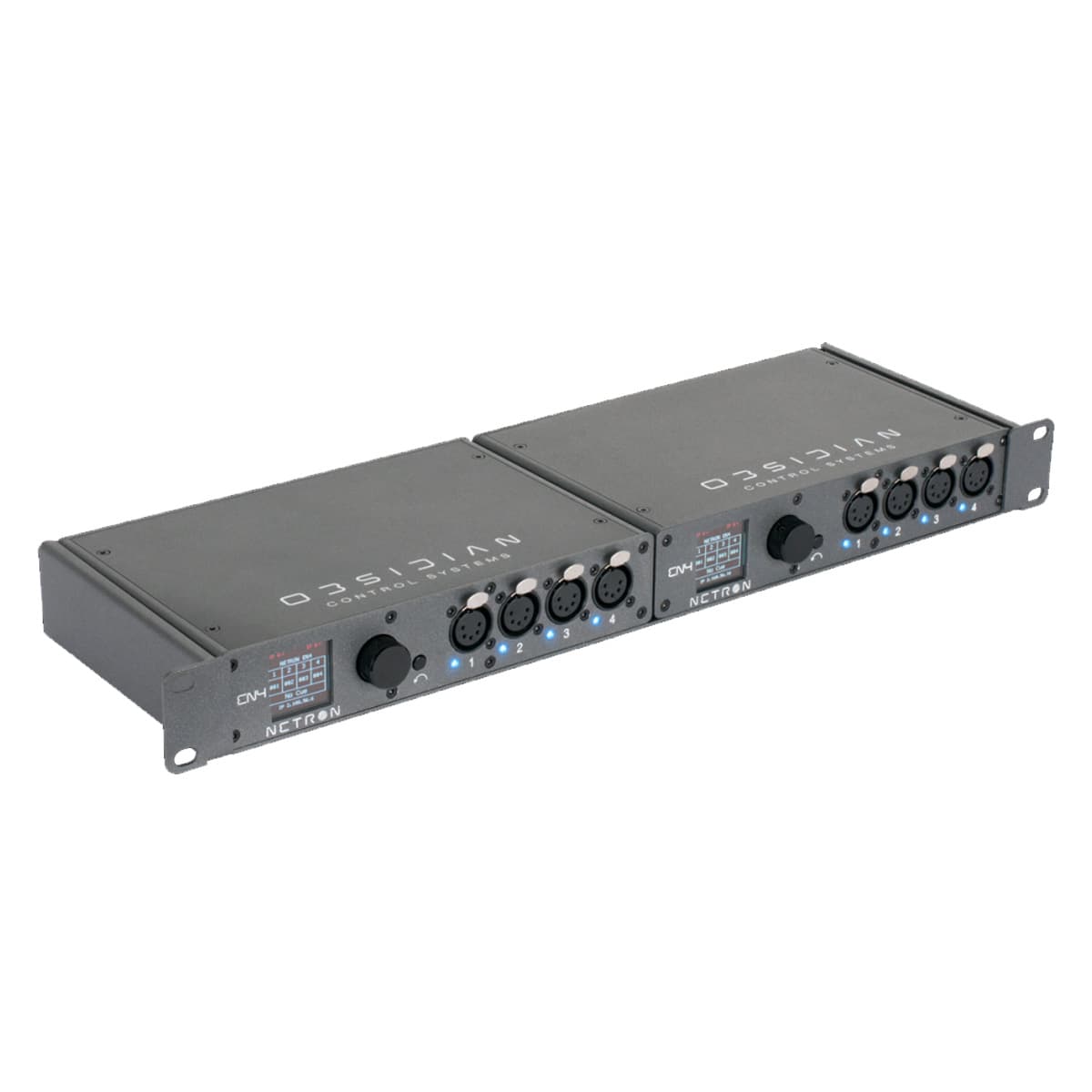

- Rack-mount option (requires NET Shelf)
Specifications

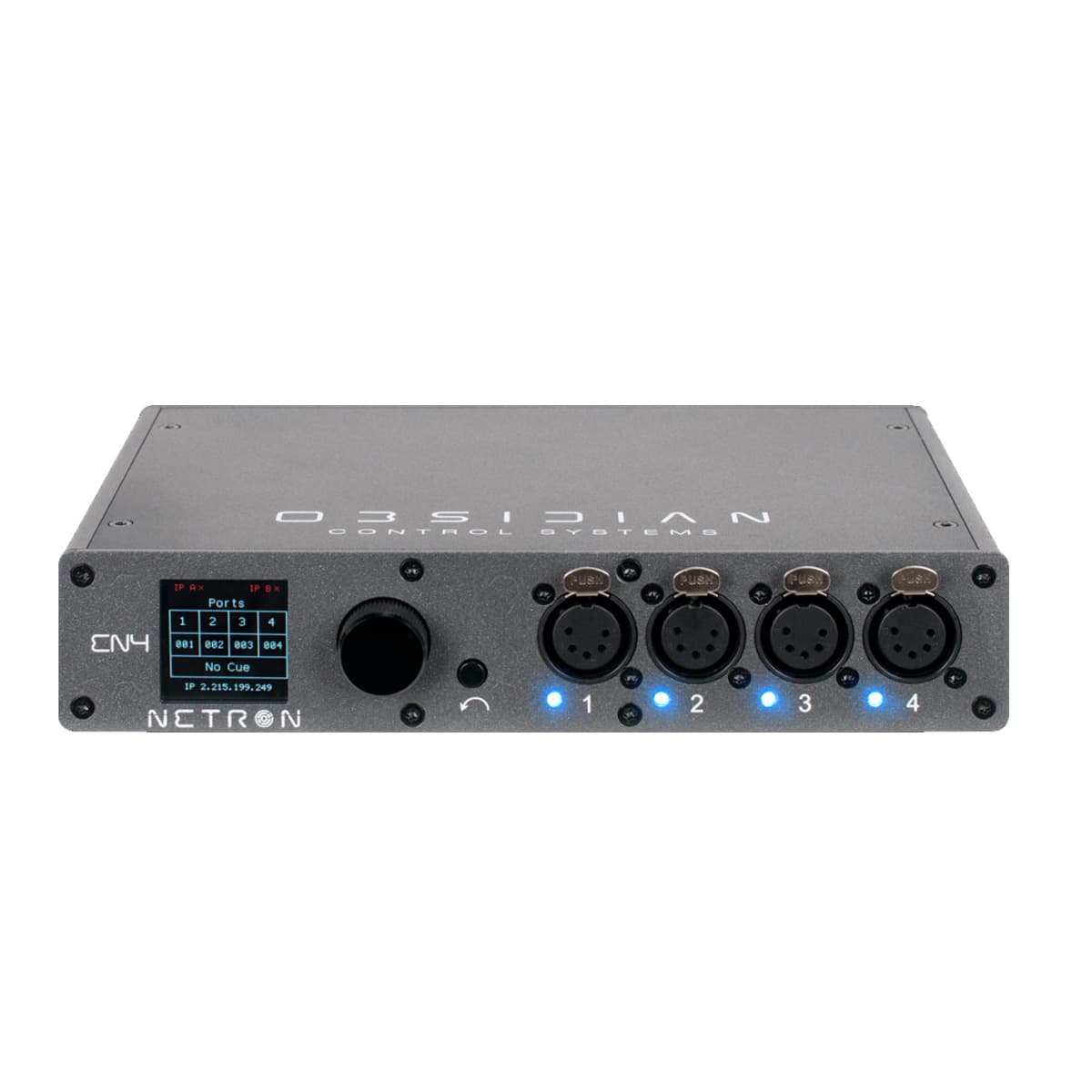

Front:
- (4) 5-pin DMX/RDM optically isolated ports
- Ports are bidirectional for DMX In and Output
- Full color OLED display
- Encoder with push-to-select/exit button

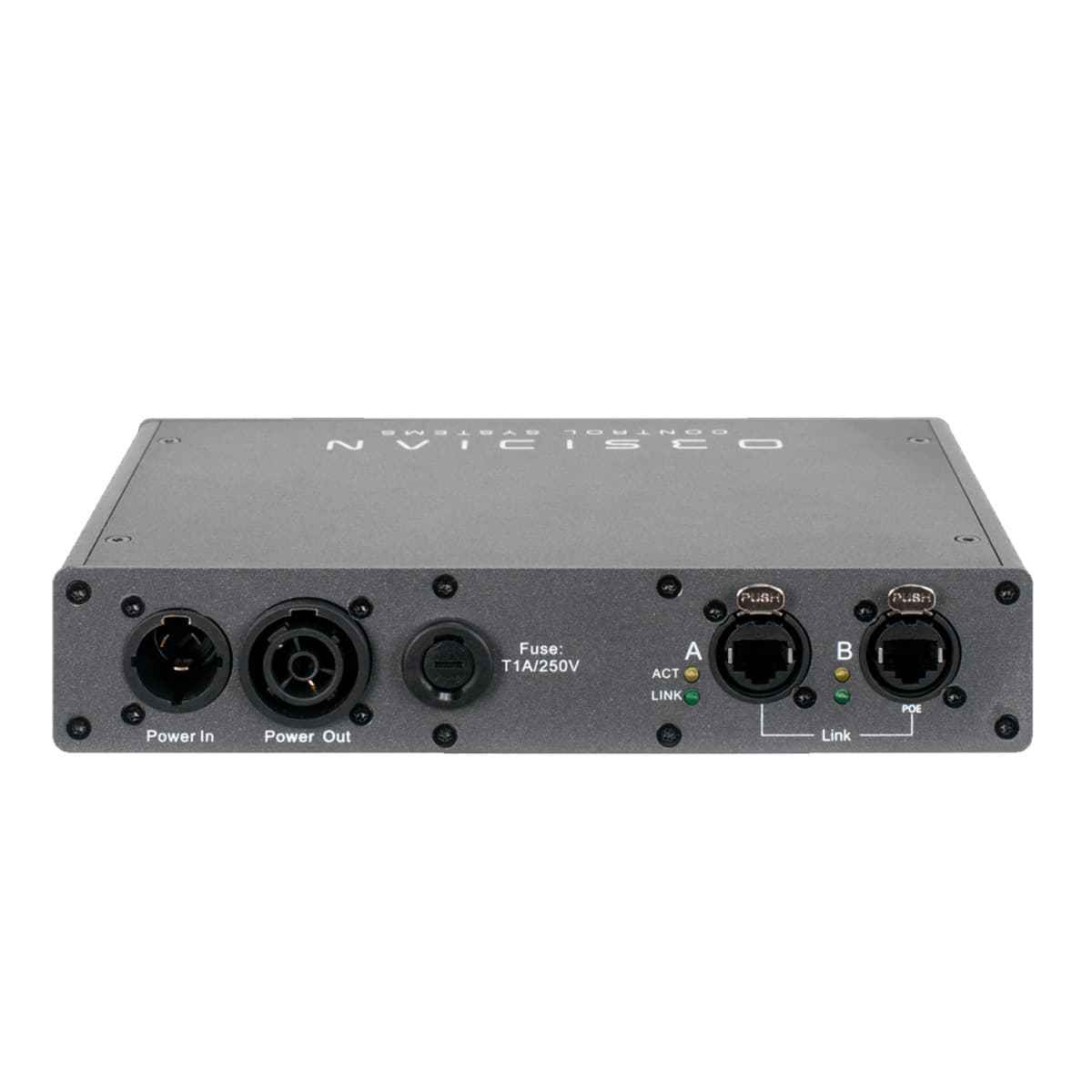

Back:
- Locking Power In/Thru
- (2) Locking RJ45 Ethernet network connections (1x POE)
Physical:
- Length: 139 mm (5.5 in.)
- Width: 215 mm (8.5 in.)
- Height: 42 mm (1.65 in.)
- Weight: 1 kg (2.2 lbs)
Electrical:
- 100-240 V nominal, 50/60 Hz, 10W
- POE 802.3af
- Power Consumption: 5W
Approvals / Ratings:
- cETLus / CE / IP20
