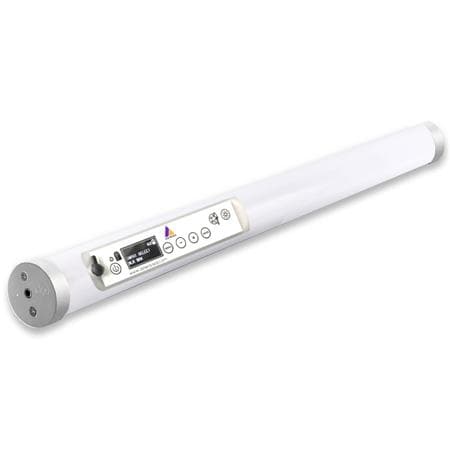

Helios Tube 1/2M

Film lighting LED tube for TV and broadcasting | Helios Tube is an RGB – Amber – Mint LED lighting Tube that has all the features of the popular Titan Tube while offering a smaller format. It allows mounting in areas where a Titan Tube wouldn’t fit and also increases portability. This LED lighting Tube has 8 pixels, half the brightness of the Titan tube and just over half its length. Colors and brightness are perfectly matched to those of the Titan Tube`s.

Optical

Colors: Red, Green, Blue, Mint, Amber

Total LED power: 36W

Maximum power draw: 24W

TLCI: ≥96

CRI: ≥96

Luminous flux: 1340Lm

Emittance @1m: 393Lx

Strobe: 0-25Hz

Beam Angle: 120Ëš

Field Angle: 180Ëš

Pixels: 8

Electrical

Battery: LG Chem Lithium-ion

Battery Lifetime: 70% after 300 cycles

Battery Runtime: Up to 20 hours

LED Lifetime: 50.000 Hours

Charging time (nominal): 3 Hours

Input Voltage : 24V 1.25A

Control

Backside Display with HSI control

Infrared

Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz

Range: 300m | 330 Yards

Wired DMX: supported via Astera PowerBox

Wireless DMX: CRMX & others, excluding W-DMX G5, City Theatrical

Construction

Housing: Polycarbonate, metal endcap

IP Rating: IP65

Relative humidity: 0-100%

Operating Temperature: 0-40 ËšC | 32-104 ËšF

Weight: 0.765kg | 1.68Lbs

Dimensions: Ø42 x 550mm | Ø1.6” x H22.7”
