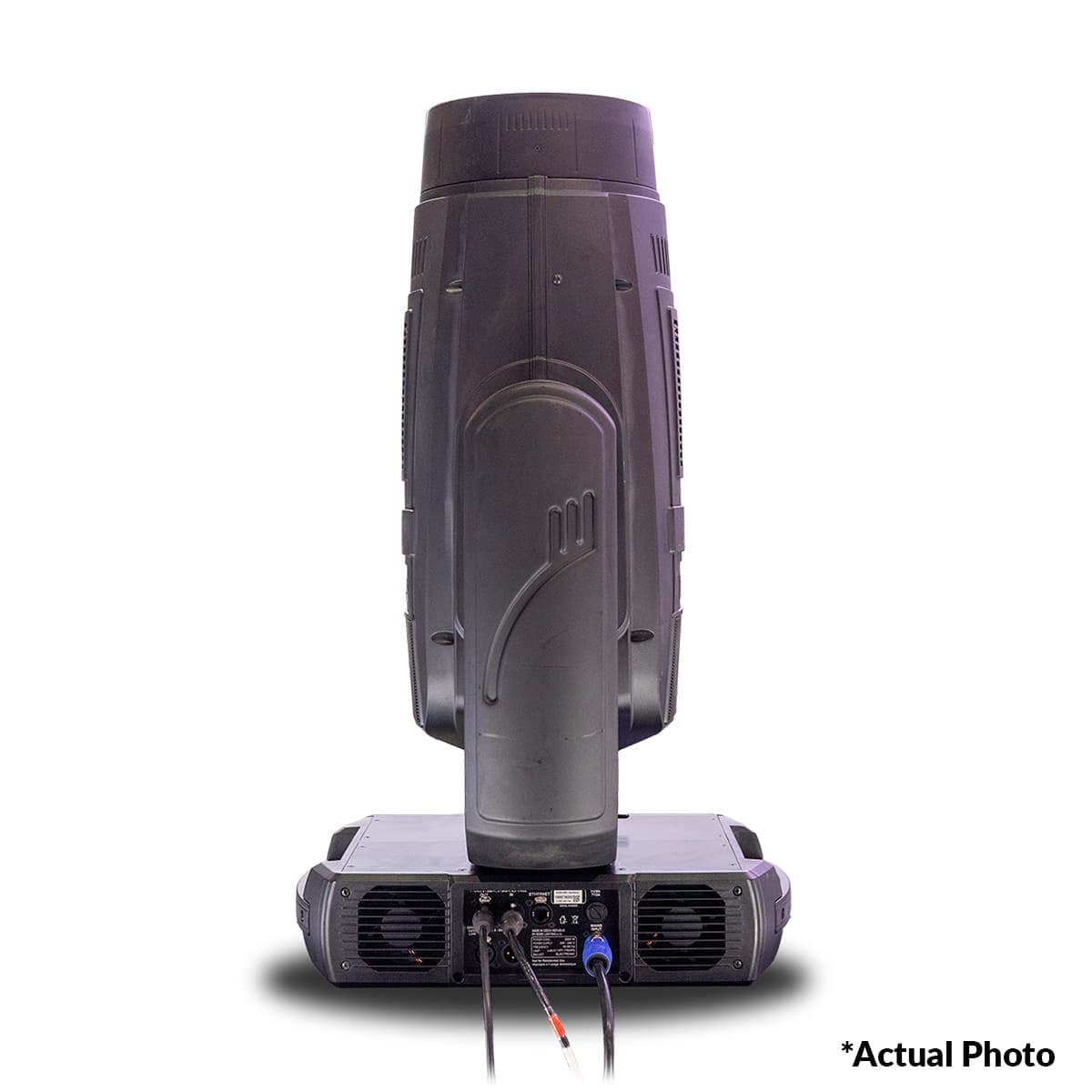

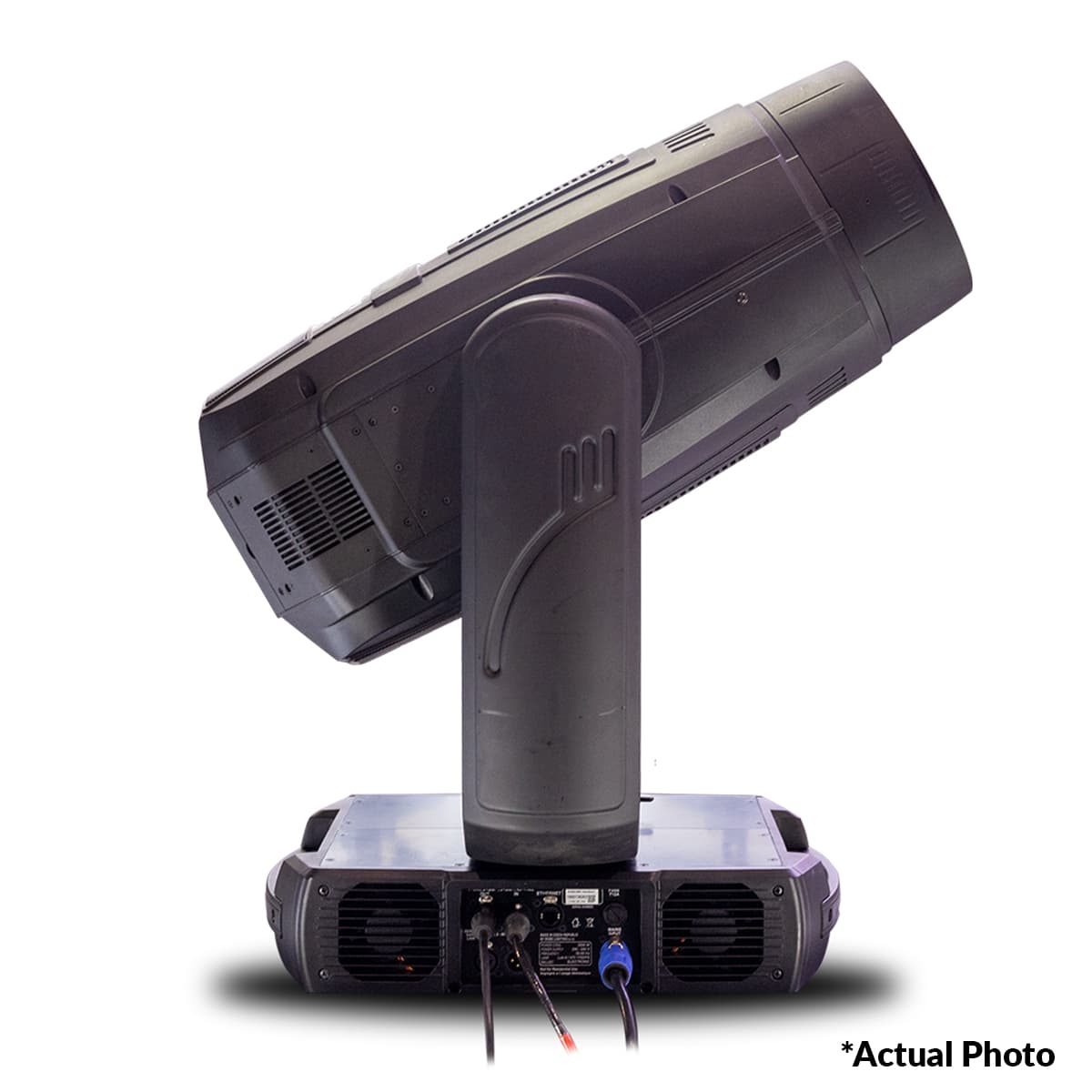

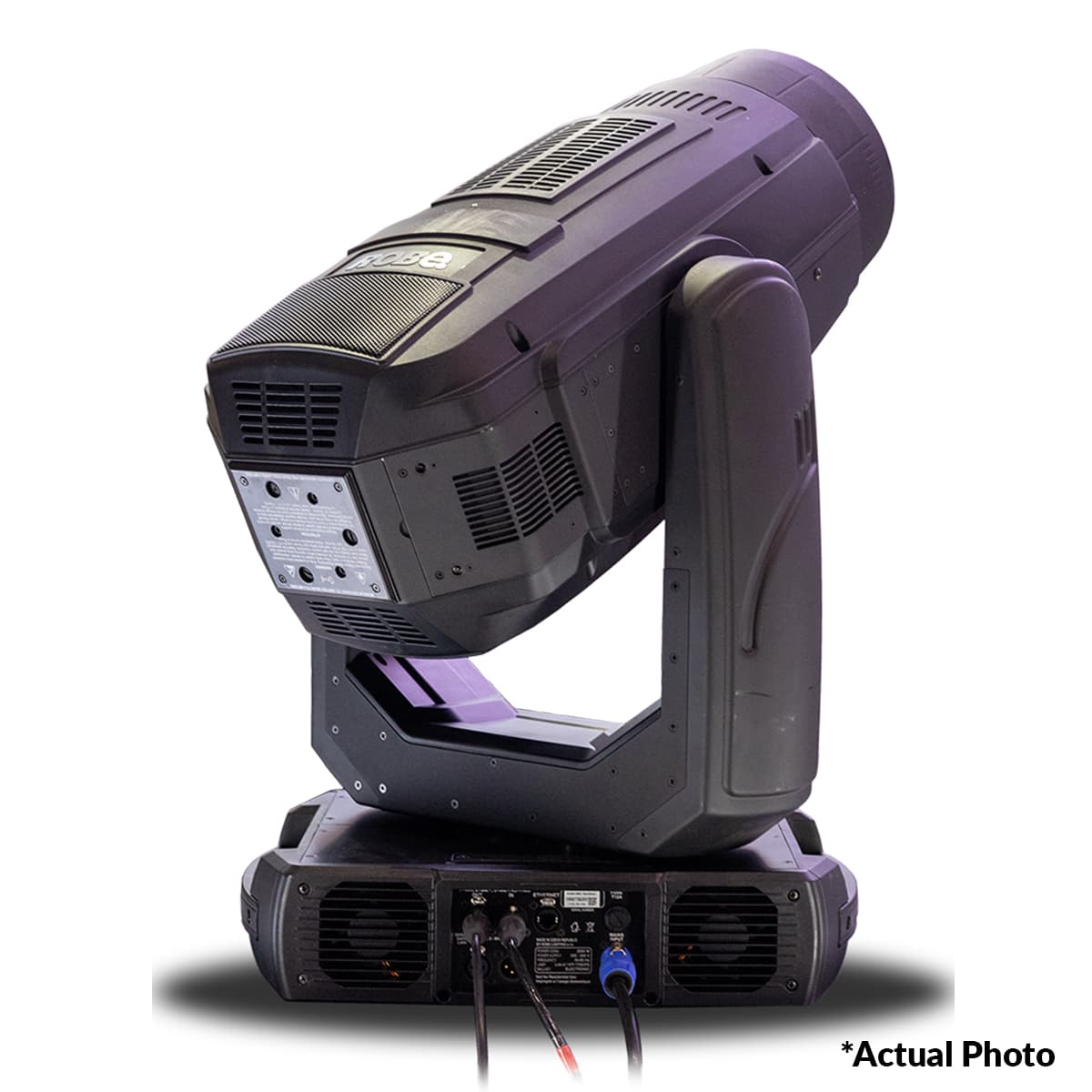

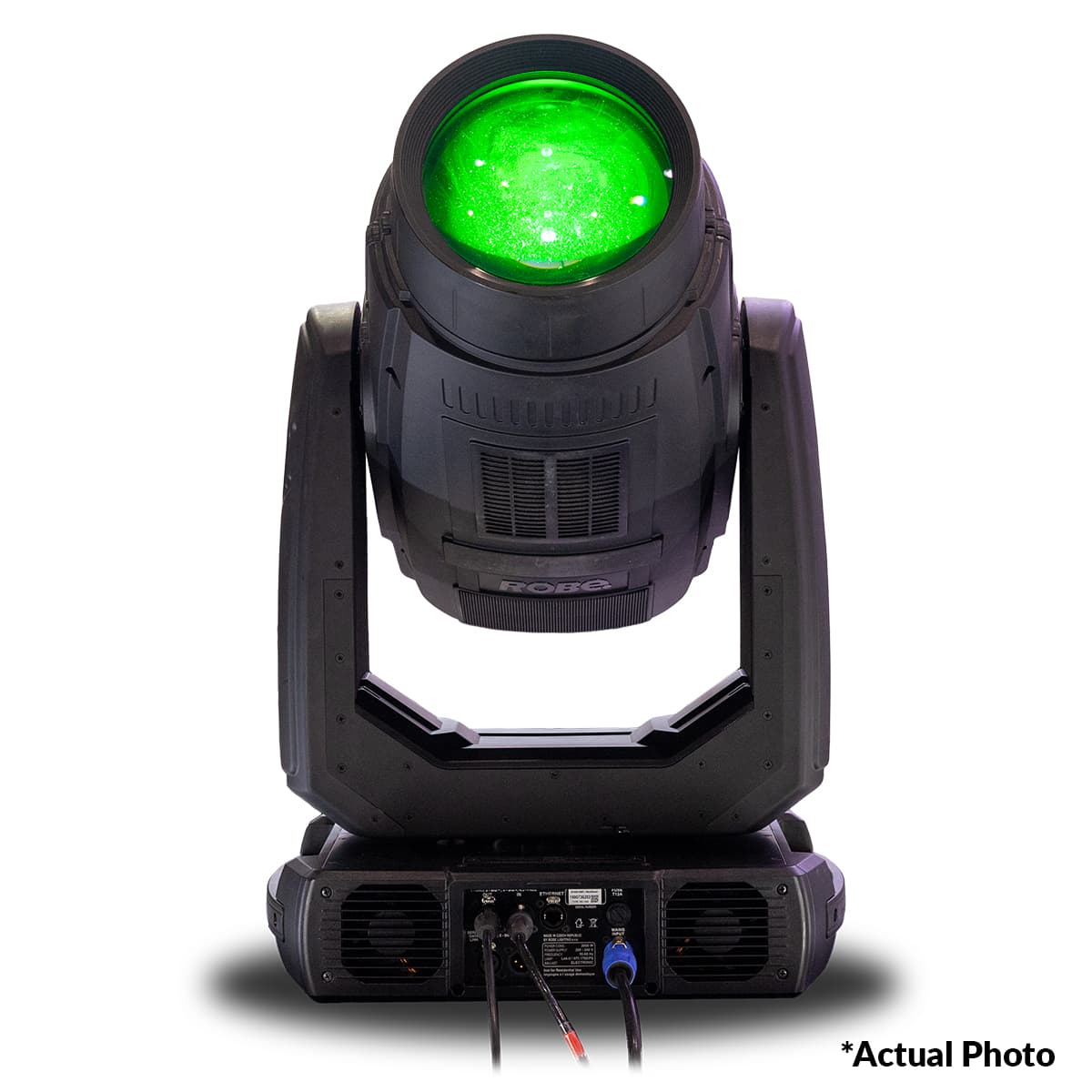

BMFL WashBeam

SOURCE

• Lamp: Compact short-arc metal halide lamp
• Base: PGJ 28 Lok-it!
• Approved model: Osram Lok-it! HTI 1700/PS
• Lifetime: 750 hours @ 1700 W / 1500 W / Quiet mode
• Colour temperature: 6.000 K
• CRI: 90
• Control: Automatic and remote on/off
• Ballast: Electronic

OPTICAL SYSTEM

• Fixture total lumen output
  • 41.000 lm at 1.700 W
  • 38.130 lm at 1.500 W
  • 33.620 lm at 1.200 W (Quiet mode)
• 300.000 lx @ 5 m, 3.000 lx @ 50 m
• Dichroic glass reflector for maximising the light efficiency
• Zoom optical system: 9:1
• Beam angle: Zoom range 5°-45°
• Output lens diameter: 180 mm

ELECTROMECHANICAL EFFECTS

• Cyan: 0-100 %
• Magenta: 0-100 %
• Yellow: 0-100 %
• Variable CTO: 2.700-6.000 K
• Colour wheel 1: 6 fixed dichroic colours - deep red, deep blue, orange, green, magenta, congo blue + white
• Colour wheel 2: 6 replaceable "SLOT&LOCK" dichroic colours - pink, lavender, laser green, 9.000 K CTB, minus half and minus green + white
• Framing shutters: 4 individually positionable blades plus rotation of the complete frame system +-45°
• Aluminium animation wheel: used alone or in combination with gobos, rotating in both directions at variable speed
• Rotating gobo wheel: 6 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open
• Iris: Motorized, stepless, pulse effects up to 3 Hz
• Frost: Variable Light, Medium plus replaceable Heavy (two another frosts included)
• Dimmer: Optimized dual blade system for exceptional smooth dimming
• Shutter: Separate dual blade system, Variable strobe effect up to 10 Hz, full black out
• Zoom and focus: Motorized
• Pan: 540°
• Tilt: 270°
• EMSTM: Electronic Motion Stabiliser system for reducing beam deviation caused by truss movement or vibration (patent pending)

CONTROL AND PROGRAMMING

• Setting & Addressing: ROBE Navigation System 2 (RNS2)
• Protocols: USITT DMX-512, RDM, Art-Net, MA Net, MA Net2, sACN
• Optional wireless version: CRMX™ technology from Lumen Radio (on request)
• Control channels: 48, 41
• Protocol modes: 2 DMX protocol modes
• Programs: 3 editable, each up to 100 steps
• Stand-alone operation: Yes
• Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning operation memory service, operation memory service log with RTC
• Pan/Tilt resolution: 16 bit
• Movement control: Tracking and vector
• CMY & CTO: 8 bit
• Colour wheel positioning: 8 or 16 bit
• Framing shutters system: 8 bit
• Rotating gobo wheel positioning: 8 bit
• Gobo indexing & rotation: 8 or 16 bit
• Animation wheel: 8 bit
• Animation wheel rotation: 8 bit
• Iris: 8 or 16 bit
• Frost: 8 bit
• Zoom: 8 or 16 bit
• Focus: 8 or 16 bit
• Dimmer: 8 or 16 bit
• Ethernet port: Art-Net, MA Net, MA Net 2, sACN
• Data in/out: Locking 3-pin & 5-pin XLR
• Power in: Neutrik PowerCon
• Built-in analyser for easy fault finding

ROTATING GOBOS

• Gobo wheel: 6x rotating glass gobos
• Outside diameter: 30.8 mm
• Image diameter: 25.0 mm
• Thickness: 1.1 mm
• Max. thickness: 3.5 mm
• Material: High temperature borofloat or better glass

FRAMING SHUTTERS SYSTEM

• Blade: 4 Blades, each with separate movement and rotation control
• Movement: Smooth with variable speed, ultrafast blade movements for creating mid-air effects
• Pre-programmed: Shape and blade sequences
• Rotation: 90° of the complete framing system

THERMAL SPECIFICATION

• Maximum ambient temperature: 45 °C (113 °F)
• Maximum surface temperature: 170 °C (338 °F)

ELECTRICAL SPECIFICATION

• Power supply: Electronic auto-ranging
• Input voltage range: 200-240 V, 50/60 Hz
• Power consumption: 2000 W at 230 V / 50 Hz

MECHANICAL SPECIFICATION

• Height: 826 mm (32.5") - head in vertical position
• Width: 483 mm (19.0")
• Depth: 335 mm (13.2")
• Weight: 38.4 kg (84.7 lbs)
• Fixation option: Pan/Tilt-lock mechanism

RIGGING

•  Mounting points: 2 pairs of 1-turn locks
• Universal operating position
• 3 mounting positions: 0°, 32° and 90°
• 2x Omega brackets with 1/4-turn quick lock
