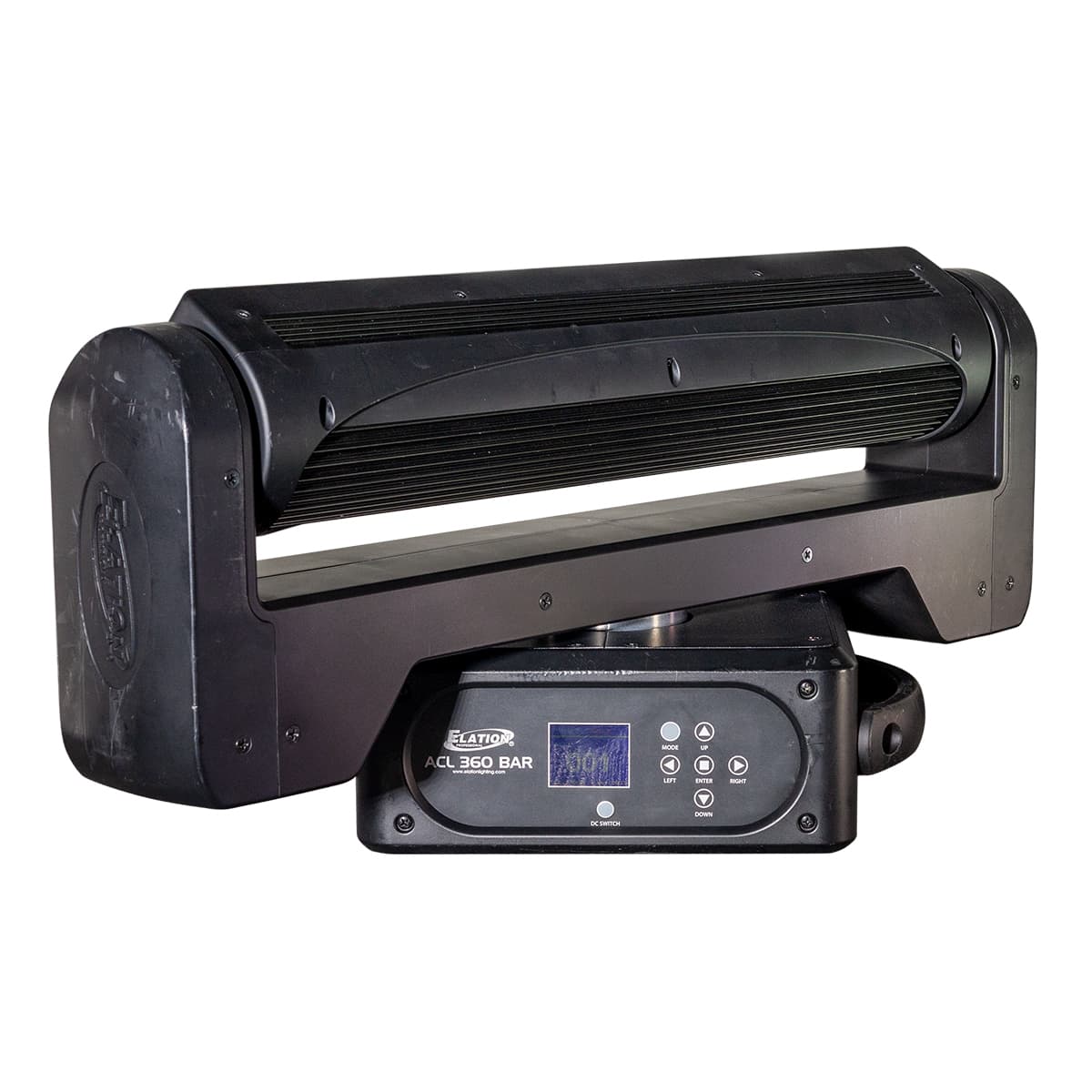

Elation
ACL 360 BAR
Elation
ACL 360 BAR
$425
In Stock and ready to ship in the U.S.
No power cables, no clamps
Road Case when purchasing in groups of 4.

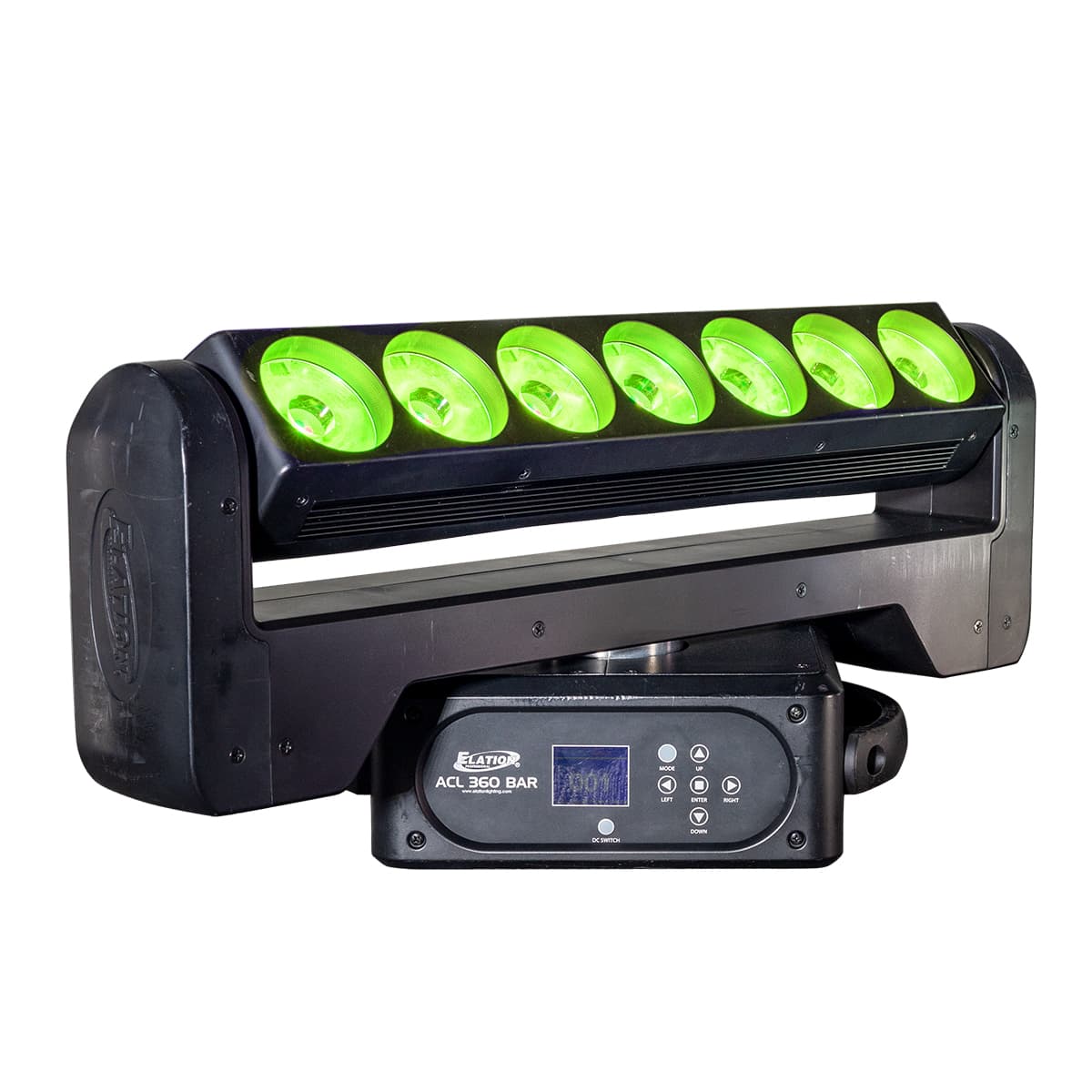

The ACL 360 BAR™ is an innovative moving bar effect light that utilizes advanced Lighting technology. It features seven 15W RGBW 4-in-1 LEDs and an advanced collimator optic lens that produces a uniform 4° color-changing beam from each lens. It offers rapid 360° pan and tilt rotation, full pixel control, and multiple connectivity options. It has a maximum power consumption of 135W and a multi-voltage power supply.
Depot Warranty: No Warranty
Condition: Good
Ships from: United States
People who were interested in this product also liked:
Details
Downloads
Shipping
Details
The ACL 360 BAR™ is a versatile moving bar effect luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, which combined produce a laser-like homogenized 4° color-changing beam from each lens which combined produce a 31° beam angle. Features include fast and precise16-bit continuous full 360° pan and tilt rotation, full individual pixel control, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 3/5pin XLR, powerCON, and RJ45 ethernet in/out connections, (6) button control full color 180° reversible menu display, 135W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
FEATURES
Versatile 31° Beam Moving Bar Effect Luminaire
New Advanced Collimator Lens
(7) Pixel Control RGBW 4-in1 LEDs
Laser-Like Homogenized 4° Color Changing Beams
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Strobe and Selectable Dimming Curve Effects
DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
Flicker Free Operation for Broadcast TV and FILM
SOURCE
(7) 15W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*
FEATURES
Versatile 31° Beam Moving Bar Effect Luminaire
New Advanced Collimator Lens
(7) Pixel Control RGBW 4-in1 LEDs
Laser-Like Homogenized 4° Color Changing Beams
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Strobe and Selectable Dimming Curve Effects
DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
Flicker Free Operation for Broadcast TV and FILM
SOURCE
(7) 15W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA (31° Full ON)
44,440 LUX 4,128 FC @3.3’ (1m)
25,260 LUX 2,347 FC @6.6’ (2m)
15,430 LUX 1,433 FC @9.8’ (3m)
10,960 LUX 1,018 FC @13.1’ (4m)
8,081 LUX 751 FC @16.4’ (5m)
EFFECTS
Individual Pixel Control
Strobe and Selectable Dimming Curves
COLOR
RGBW
CONTROL / CONNECTIONS
(3) DMX Channel Modes (17 / 19 / 43)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
3pin/5pin DMX In/Out
RJ45 Ethernet In/Out (KlingNET™ / Art-NET)
powerCON Power In/Out
SIZE / WEIGHT
Length: 22.6” (575mm)
Width: 7.2” (184mm)
Vertical Height: 10.2” (258mm)
Weight: 22.0 lbs. (10 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
135W Max Power Consumption
5F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | IP30
The ACL 360 BAR™ is a versatile moving bar effect luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, which combined produce a laser-like homogenized 4° color-changing beam from each lens which combined produce a 31° beam angle. Features include fast and precise16-bit continuous full 360° pan and tilt rotation, full individual pixel control, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 3/5pin XLR, powerCON, and RJ45 ethernet in/out connections, (6) button control full color 180° reversible menu display, 135W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
FEATURES
Versatile 31° Beam Moving Bar Effect Luminaire
New Advanced Collimator Lens
(7) Pixel Control RGBW 4-in1 LEDs
Laser-Like Homogenized 4° Color Changing Beams
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Strobe and Selectable Dimming Curve Effects
DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
Flicker Free Operation for Broadcast TV and FILM
SOURCE
(7) 15W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*
FEATURES
Versatile 31° Beam Moving Bar Effect Luminaire
New Advanced Collimator Lens
(7) Pixel Control RGBW 4-in1 LEDs
Laser-Like Homogenized 4° Color Changing Beams
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Strobe and Selectable Dimming Curve Effects
DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
Flicker Free Operation for Broadcast TV and FILM
SOURCE
(7) 15W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA (31° Full ON)
44,440 LUX 4,128 FC @3.3’ (1m)
25,260 LUX 2,347 FC @6.6’ (2m)
15,430 LUX 1,433 FC @9.8’ (3m)
10,960 LUX 1,018 FC @13.1’ (4m)
8,081 LUX 751 FC @16.4’ (5m)
EFFECTS
Individual Pixel Control
Strobe and Selectable Dimming Curves
COLOR
RGBW
CONTROL / CONNECTIONS
(3) DMX Channel Modes (17 / 19 / 43)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
3pin/5pin DMX In/Out
RJ45 Ethernet In/Out (KlingNET™ / Art-NET)
powerCON Power In/Out
SIZE / WEIGHT
Length: 22.6” (575mm)
Width: 7.2” (184mm)
Vertical Height: 10.2” (258mm)
Weight: 22.0 lbs. (10 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
135W Max Power Consumption
5F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | IP30
